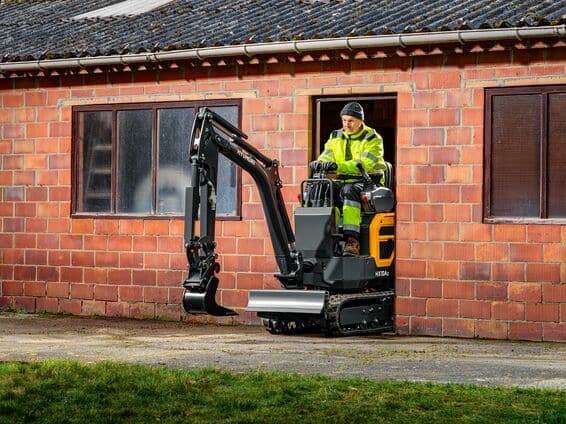

Zero Tailswing Design
Work confidently in confined spaces with a compact design that keeps the upper structure within the machine's track width.
UK-wide delivery — delivery direct to your site
Hyundai Construction Equipment
HX10A Z

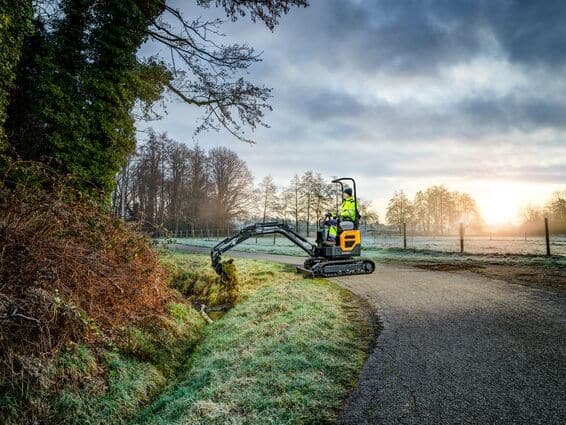

True zero tailswing agility, easy access and smooth control make the HX10A Z a highly productive micro excavator for restricted, indoor and urban work.
In stock
Price
POA
Compact Excavators

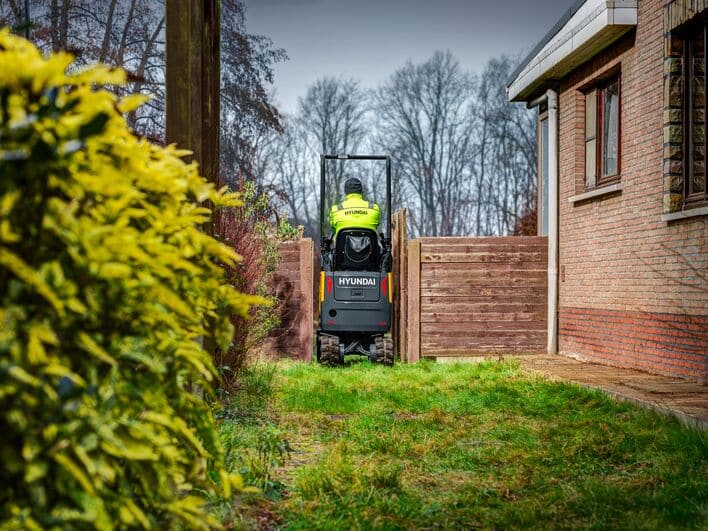

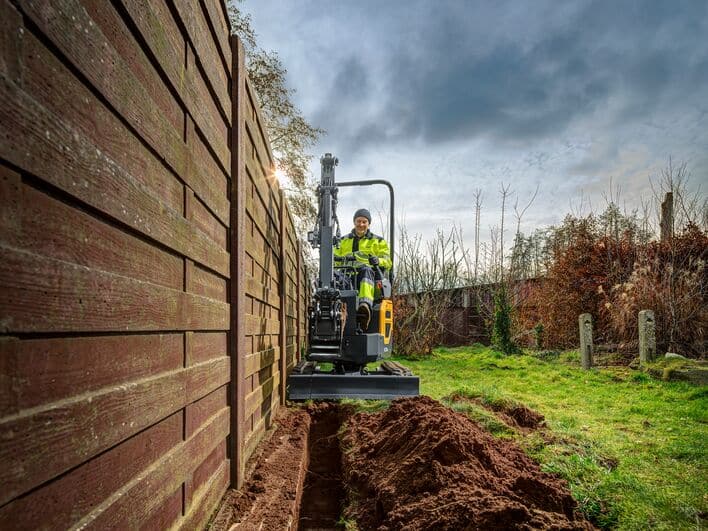

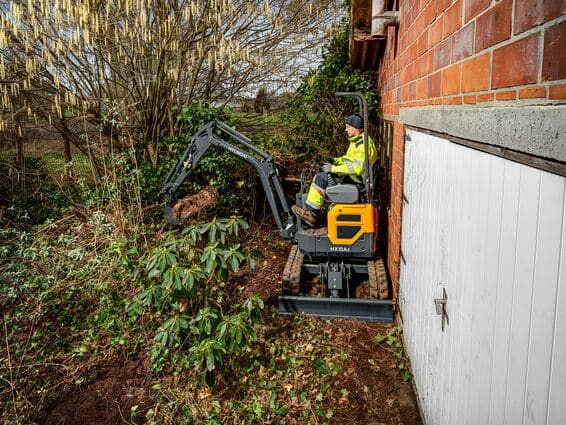

The Hyundai HX10A Z is designed to make productive excavation possible where larger machines simply cannot work. Its true zero tailswing layout, narrow access capability and compact footprint help operators manoeuvre confidently through restricted areas, work close to walls and boundaries, and tackle landscaping, utility and indoor jobs with less repositioning.
Comfortable, intuitive controls and an extendable undercarriage support stable, precise working throughout the day, while responsive hydraulics help make the most of a wide range of tasks. Protected components, durable construction and straightforward service access are designed to reduce avoidable downtime and keep this compact machine earning its place on site.
Powerful Compact Performance
A Stage V Kubota engine delivers impressive digging force, lifting capacity and fast cycle times despite the machine's compact footprint.
Smooth Hydraulic Control
An efficient open-centre hydraulic system with servo-controlled joysticks provides precise operation and responsive performance.
Built for Versatility
An extendable undercarriage, two-speed travel and auxiliary hydraulic piping allow the HX10A Z to adapt quickly to a wide range of applications.
Technical Specifications
Full specification for the Hyundai HX10A Z compact excavator. Download the full datasheet for complete technical drawings and dimensional data.
Machine weights & dimensions
Operating Weight1,165 kg
Machine Width730–1,100 mm
Machine Height2,220 mm
Machine Length1,353.1 mm
Rear Swing Radius550 mm
Ground Clearance150 mm
Engine
Engine MakeKubota
Rated Power7.6 kW (10.35 hp)
Rated Speed2,300 rpm
Displacement0.7 L (719 cc)
Fuel Tank Capacity14.2 L
Emissions StandardStage V
Digging performance
Max Digging Depth2,205 mm
Max Reach at Ground3,355 mm
Max Vertical Wall Depth1,025 mm
Max Digging Height3,050 mm
Max Dump HeightTBC
Bucket Capacity0.02m³
Hydraulics & travel
Main Hydraulic Pump Flow2 × 10.4 L/min @ 2,300 rpm
Pilot Pump Flow3.1 L/min @ 2,300 rpm
Maximum Auxiliary Pressure176 bar
Hydraulic Tank Capacity10.8 L
Travel Speed1.7–3.4 km/h
Maximum Gradeability30°
Drawbar Pull12.8 kN
Download full datasheet
Complete dimensional drawings, load charts and full technical specification PDF
