HX19e

A compact excavator is a smaller 360-degree excavator designed for digging, trenching, grading, lifting and attachment work where space, access or transport are important. In the UK, the terms compact excavator, mini excavator and mini digger are often used for the same general type of machine. The best choice depends on operating weight, access width, digging performance and the attachments required for the job.

Compact excavators are widely used for groundworks, utilities, landscaping, drainage, foundations, road and footpath work, property development and general construction. Their smaller footprint makes them particularly useful on residential sites, urban projects and restricted-access jobs. Different models offer different digging depths, lifting capacities, tail-swing designs and hydraulic performance, so the right machine should be matched to the work rather than chosen on size alone.

Start with the access available on site, then consider the digging depth, reach, lifting requirement, attachment size and ground conditions. Smaller mini excavators are easier to transport and can work through tighter access, while larger compact excavators provide more stability, digging force and lifting capability. Operating weight is a useful first comparison, but machine width, tail swing and hydraulic flow can be just as important for the application.

Zero tail swing means the rear of the upper structure stays within, or very close to, the width of the tracks as the excavator rotates. This can make a zero tail swing excavator easier to use beside walls, roads, fencing and other obstacles where rear overhang is a concern. Not every compact excavator has the same tail-swing layout, so check the individual machine specification when restricted-space working is a priority.

Yes. Depending on the model and hydraulic specification, compact excavators can work with buckets, breakers, augers, grabs, compactors, rippers, grading attachments and other hydraulic tools. Quick-coupler preparation and auxiliary hydraulic circuits can make attachment changes easier. When selecting an attachment, check the machine’s hydraulic flow, pressure, lifting capacity and approved attachment weight so the combination is suitable for the intended work.

Compact excavators are a popular choice for landscaping and groundworks because they combine digging capability with a relatively small footprint. They can be used for trenching, drainage, foundations, grading, site preparation, material handling and reinstatement. Blade options and attachments can extend their usefulness further. For soft or finished ground, machine weight, track type and ground pressure should also be considered before choosing a model.

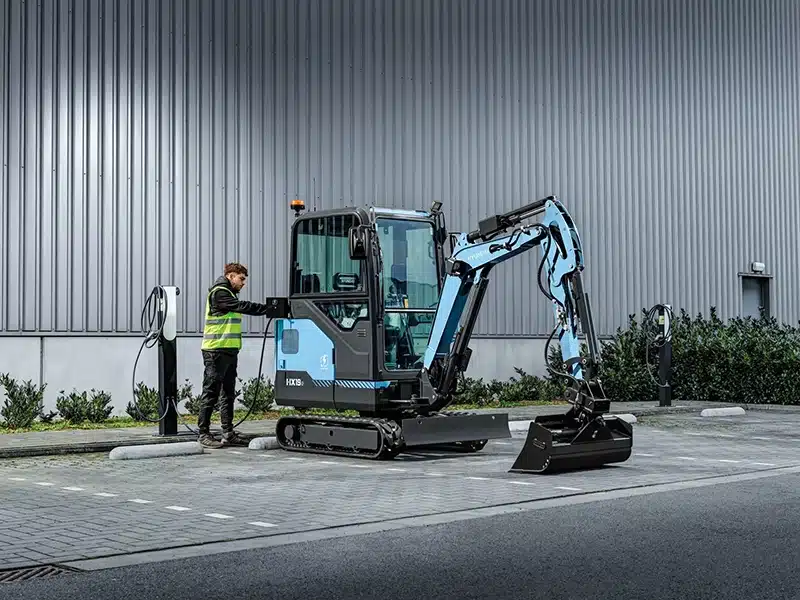

Electric compact excavators are available within the modern Hyundai range, alongside conventional Stage V diesel machines. Electric models can be attractive where low noise, reduced local exhaust emissions or indoor and urban working are important. Suitability depends on the duty cycle, charging arrangements and site requirements, so battery capacity and expected working pattern should be considered as part of the machine selection process.

The price of a new Hyundai compact excavator varies according to model size, specification, attachments, coupler choice and any factory or dealer-fitted options. Availability and finance offers can also change over time. Rygor Plant can help compare suitable Hyundai mini excavators and provide current pricing based on the machine configuration required for your business or project.
