Powerful Hydraulic Performance
The Stage V Yanmar 4TNV98C engine and load-sensing hydraulic system deliver smooth, responsive power, precise machine control and excellent fuel efficiency for demanding applications.
UK-wide delivery — delivery direct to your site
Hyundai Construction Equipment

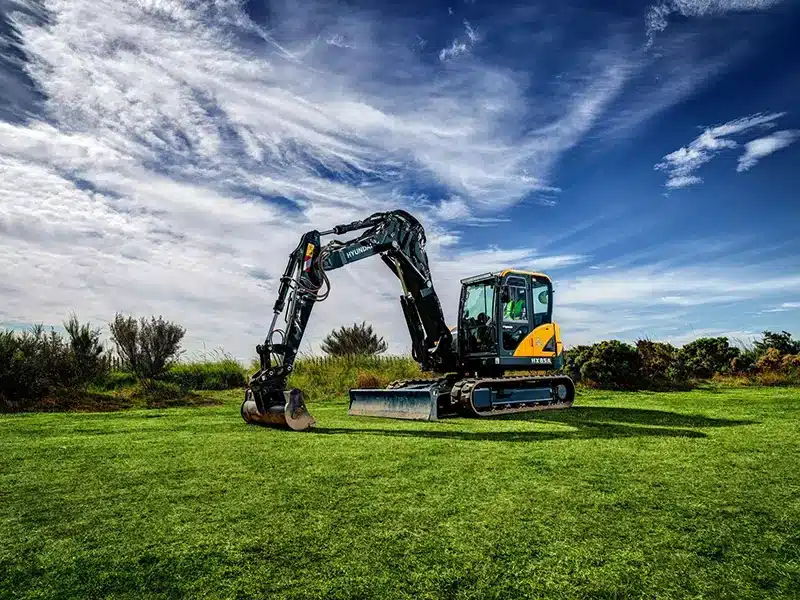

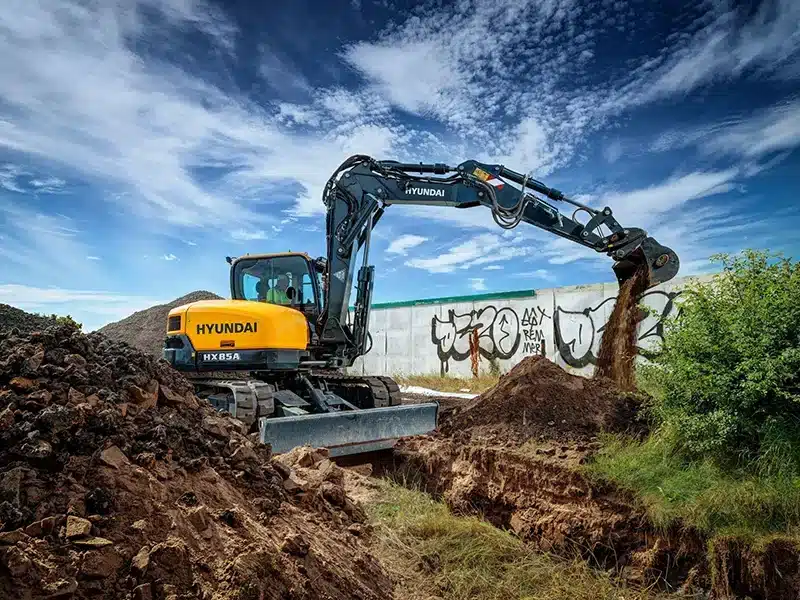

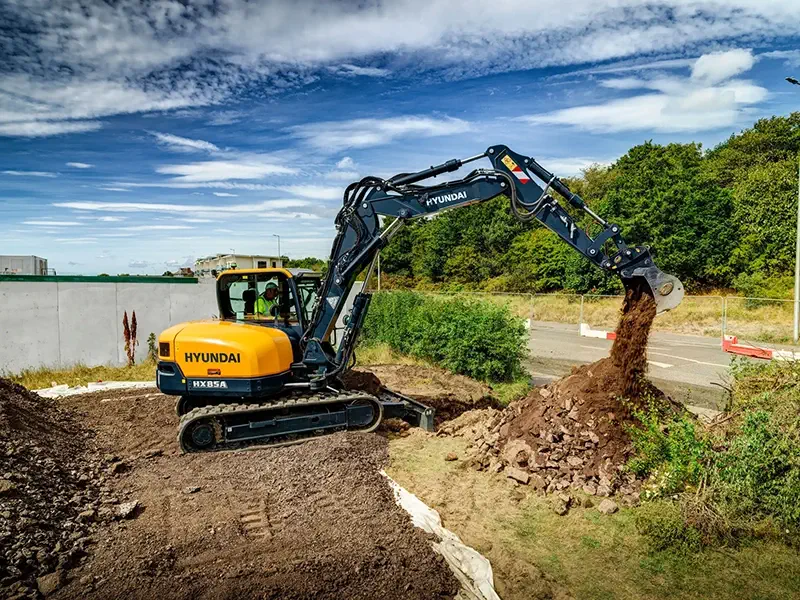

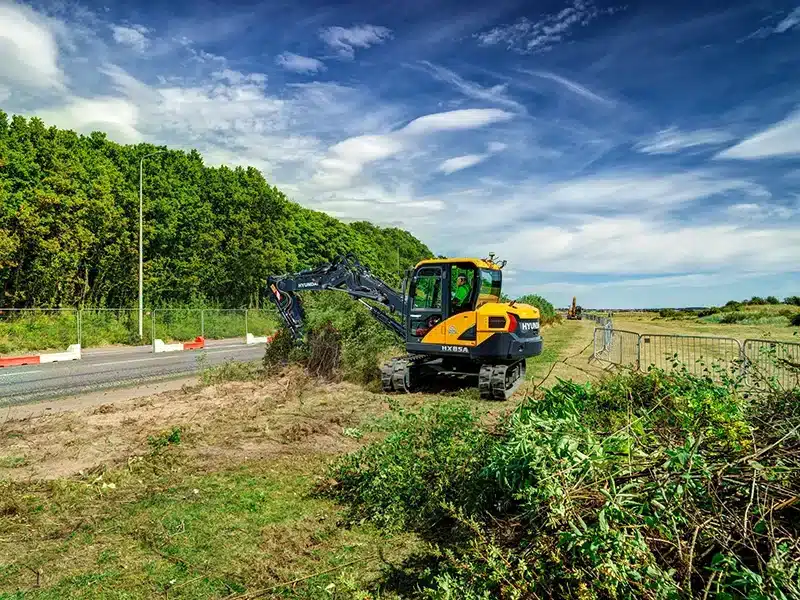

HX85A
Stable, compact and highly versatile, the HX85A combines responsive hydraulic control with operator comfort to keep demanding utility and construction work moving efficiently.
In stockFinance available2yr warranty
Price
POA
Compact Excavators
The Hyundai HX85A is built for contractors who need substantial capability in a machine that remains practical on restricted sites. Its compact dimensions and stable working platform support confident operation in urban, utility and construction environments, while load-sensing hydraulics provide smooth response and the flexibility to handle a broad mix of digging, lifting and grading duties.
Flexible boom and blade configurations help tailor the machine to different applications, while an ergonomic cab keeps controls close at hand for comfortable, fatigue-resistant working. Accessible service points, durable components and Hyundai machine-management support help simplify maintenance planning, reduce downtime and maximise productive hours across the working week.
Exceptional Jobsite Versatility
The optional two-piece boom, four-way angle dozer blade and adjustable auxiliary circuit settings allow the HX85A to adapt quickly to a wide range of excavation, grading, lifting and attachment applications.
Operator Comfort & Control
A spacious ROPS/TOPS/FOPS-certified cab, intuitive 7-inch touchscreen display and standard proportional joysticks provide excellent visibility, precise machine control and all-day operator comfort.
Easy Maintenance & Maximum Uptime
Wide-opening service access, long-life service components and Hyundai Hi MATE telematics simplify maintenance, reduce downtime and help keep the HX85A operating at peak performance.
Technical Specifications
Full specification for the Hyundai HX85A compact excavator. Download the full datasheet for complete technical drawings and dimensional data.
Machine weights & dimensions
Operating Weight8,480 kg
Machine Width2,300 mm (7 ft 7 in)
Machine Height2,560 mm (8 ft 5 in)
Machine Length1,600 mm (rear-end)
Tail Swing Radius1,645 mm (5 ft 5 in)
Ground Clearance360 mm (1 ft 2 in)
Engine
Engine MakeYanmar
Rated Power49.9 kW
Travel Speed5.1 / 3.1 km/h (High/Low – Rubber Track)
Displacement3,319 cc
Fuel Tank Capacity115 litres
Emissions StandardStage V
Digging performance
Max Digging Depth4,660 mm (15 ft 3 in) (2-piece boom)
Max Reach at Ground7,480 mm (24 ft 6 in) (2-piece boom)
Max Vertical Wall Depth4,230 mm (13 ft 11 in) (2-piece boom)
Max Digging Height7,650 mm (25 ft 1 in) (2-piece boom)
Max Dump Height5,600 mm (18 ft 4 in) (2-piece boom)
Bucket Capacity0.25 (0.33 (SAE Heaped)
Hydraulics & travel
Pump TypeVariable displacement piston pump
Maximum Hydraulic Pressure280 bar
Maximum Hydraulic Flow144 L/min
Pilot Circuit Pressure35 bar
Hydraulic Tank Capacity60 L
Hydraulic System Capacity120 L
Travel Speed5.1 / 3.1 km/h (High/Low – Rubber Track)
Traction Force6,400 kgf
Swing Speed9 rpm
Download full datasheet
Complete dimensional drawings, load charts and full technical specification PDF
Finance & Leasing Options
Spread the cost of your HX85A with flexible financing through Rygor Plant. All options are subject to status and financial check.
0% Finance for 36 months*
POA
0% APR · 10% Deposit required · 36 months · You own the machine at the end
- Hyundai A Series Mini Excavator Range
- 1 to 8.5 tonnes
- While stocks last
- Offer ends 30th September 2026
Finance lease
POA
Indicative rates on request · Term flexible 24–60 months · Machine treated as off balance sheet
- Lower monthly payments than HP in some cases
- Flexible end-of-term options
- Option to extend, return or buy at end of term
- Rentals fully tax deductible
Finance is subject to status and financial check. Rygor Plant acts as a credit broker, not a lender. Finance is provided by third-party lenders. The representative APR of 1.9% is based on a specific example and your rate may differ. All finance is subject to eligibility. Terms and conditions apply.
Aftersales, Service & Parts
Your relationship with Rygor Plant doesn't end at delivery. We're with you for the life of your machine.
Planned maintenance
Scheduled service plans keep your HX85A at peak performance and maintain warranty coverage throughout its life.
Book a serviceBreakdown assistance
Machine down on site? Our mobile engineers operate across the UK and can be dispatched fast to minimise your downtime.
Call nowGenuine OEM parts
Genuine Hyundai parts sourced directly from the OEM. Same-day or next-day dispatch from our parts hubs.
Order parts onlineEnquire About This Machine
Interested in HX85A? Complete the form and one of our plant specialists will contact you with pricing, availability and finance options.
