Crawler excavators

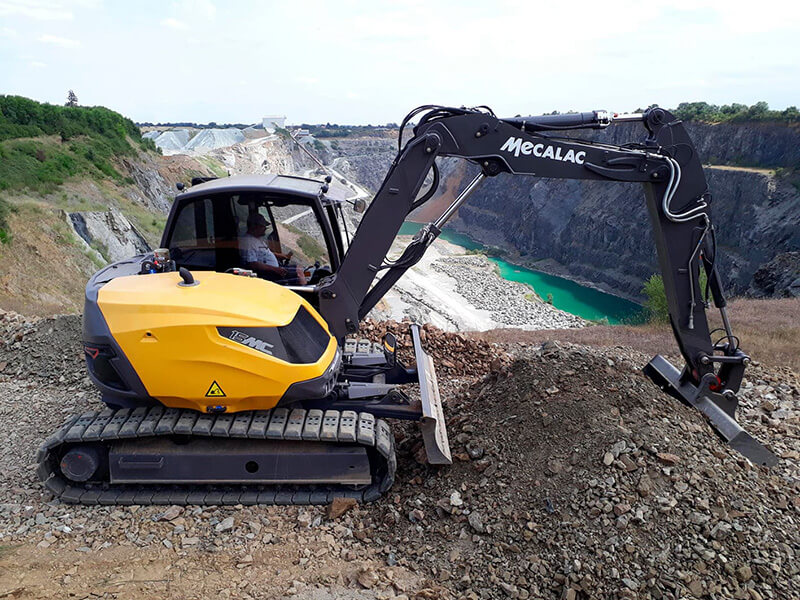

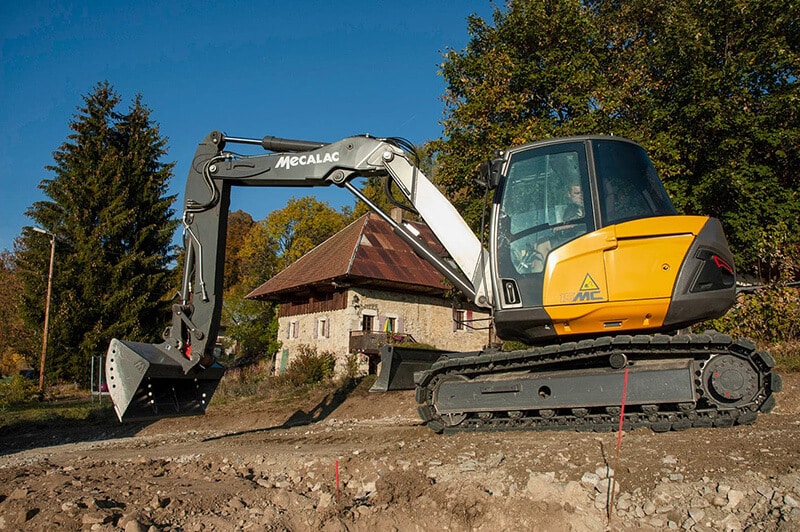

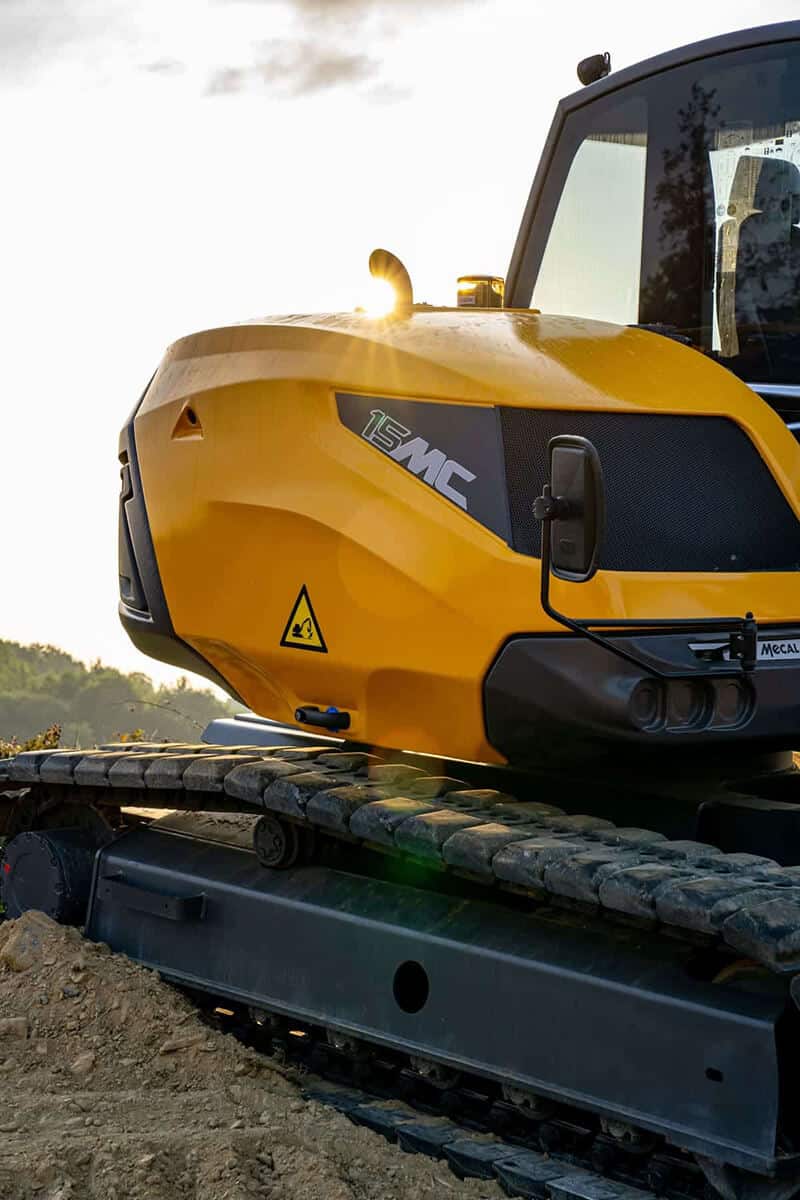

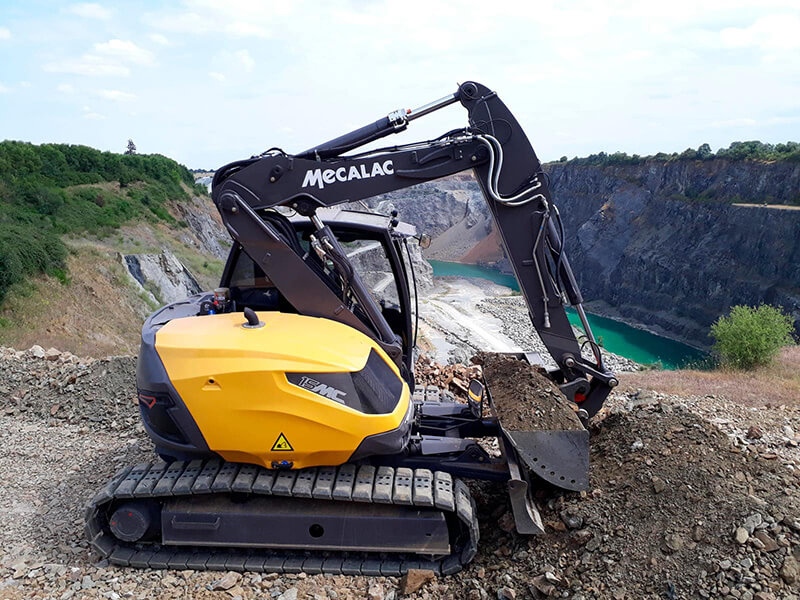

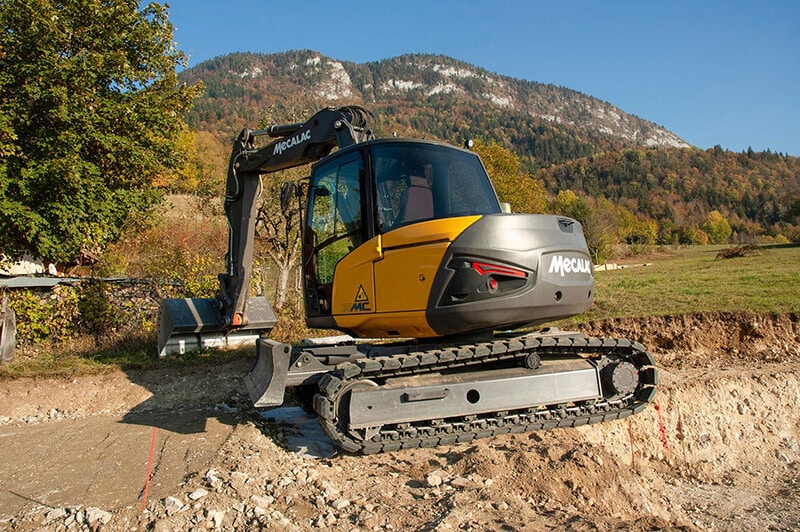

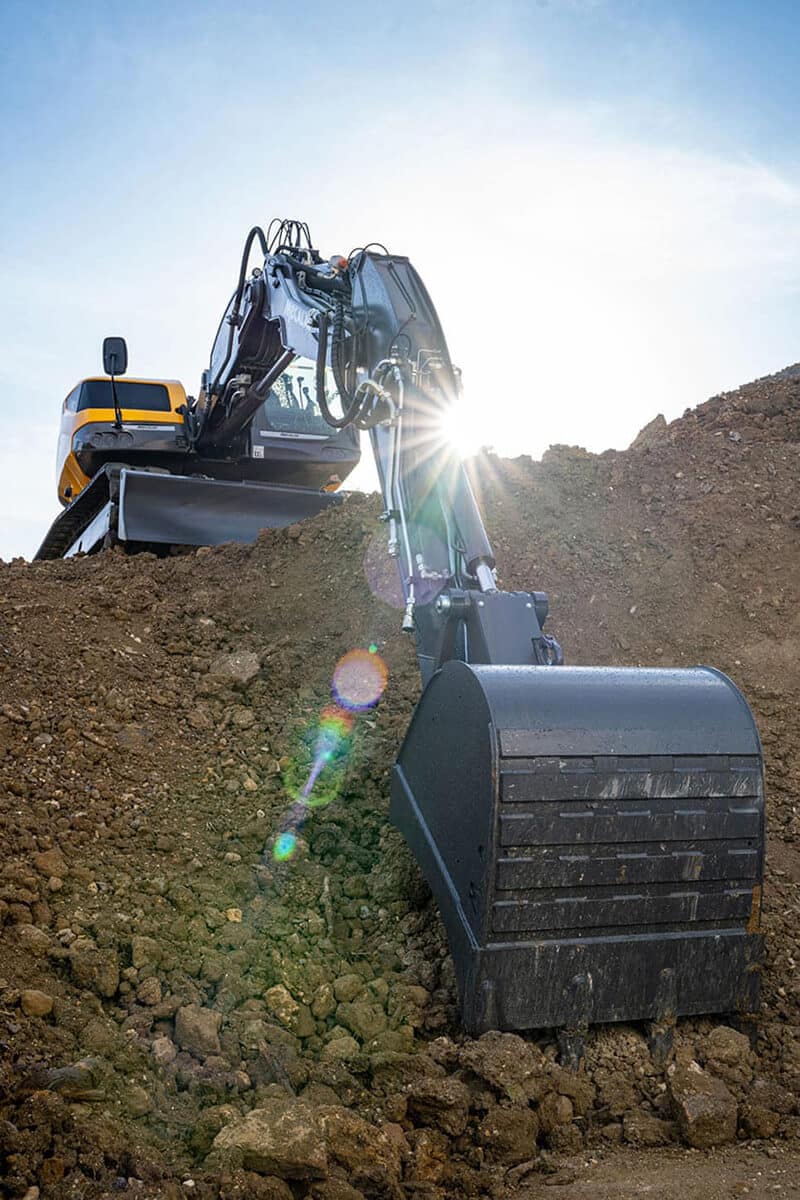

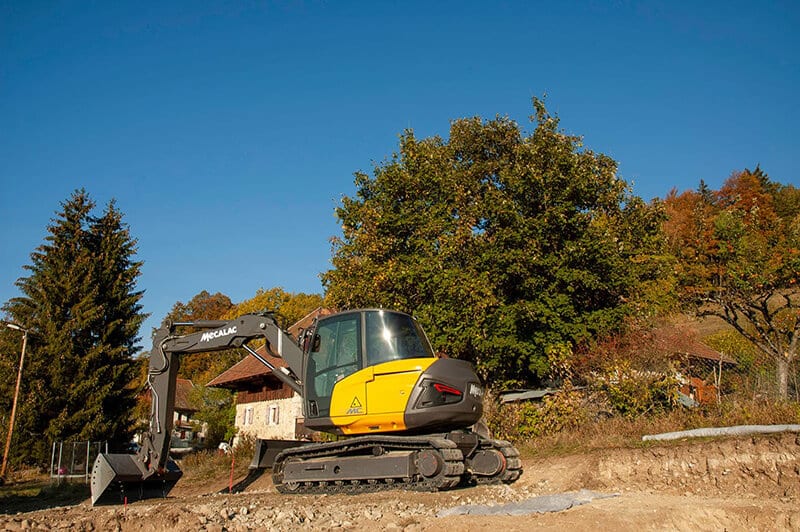

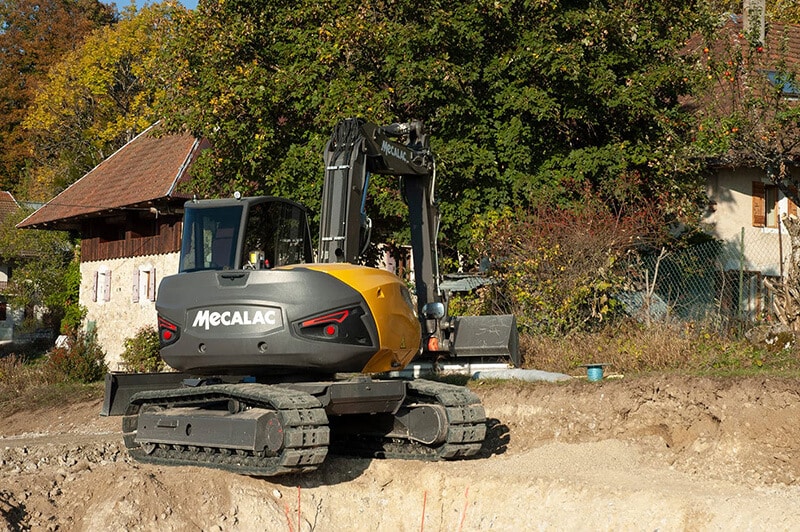

As a compact and powerful excavator, the new 15MC is designed to operate as close to the tracks as possible, while offering an impressive working range of 9 meters. It incorporates the latest patented technologies from Mecalac for both interior and exterior functions. Powered by a 100 kW engine, it is the most powerful machine in its class. Discover the new tracked excavator, proudly “made in Mecalac.”
Specifications
| Total operating weight | 14780 kg (32,584 lb) / 15430 kg (34,017 lb) |
| Engine power | 100 kW (136 hp - 134 imperial hp) |
| Tail swing radius | 1570 mm (5’2”) |
| Travel speed | 6 km/h (3.7 mph) |
| Overall width | 2500 mm (8’2”) |

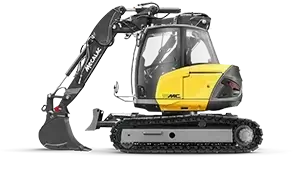

| With versatile Mecalac attachment | |
| - Turning width | 3415 mm (11’2”) |
| - Tear-out force | 5500 daN (12,360 lbf) |
| - Max. depth | - 4730 mm (-15’6”) |

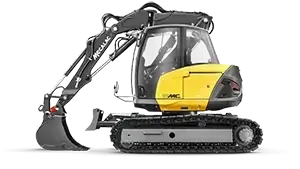

| With Two-piece boom attachment | |
| - Turning width | 2990 mm (9’7”) |
| - Tear-out force | 6200 daN (13,940 lbf) |
| - Max. depth | - 4980 mm (-16’4”) |

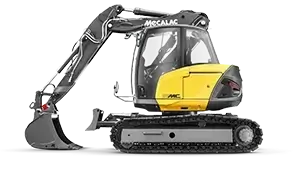

| With Offset Two-piece boom attachment | |
| - Turning width | 2990 mm (9’7”) |
| - Tear-out force | 6200 daN (13,940 lbf) |
| - Max. depth | - 4880 mm (16’) |
