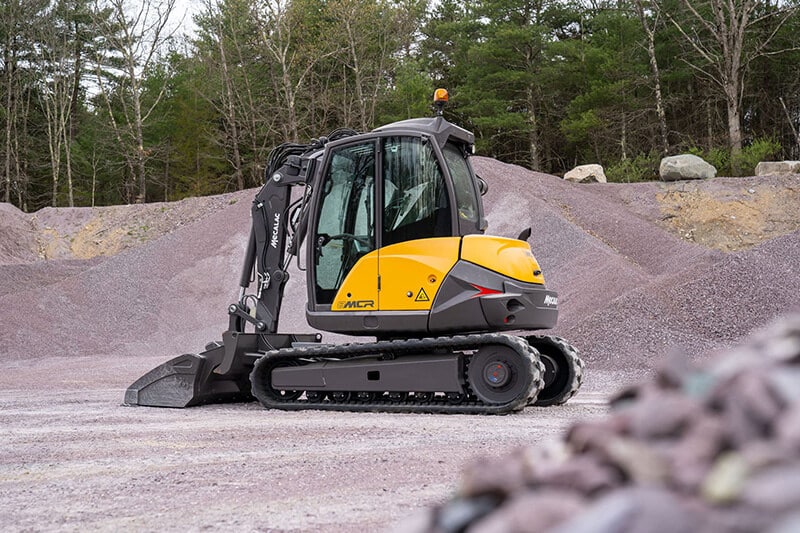

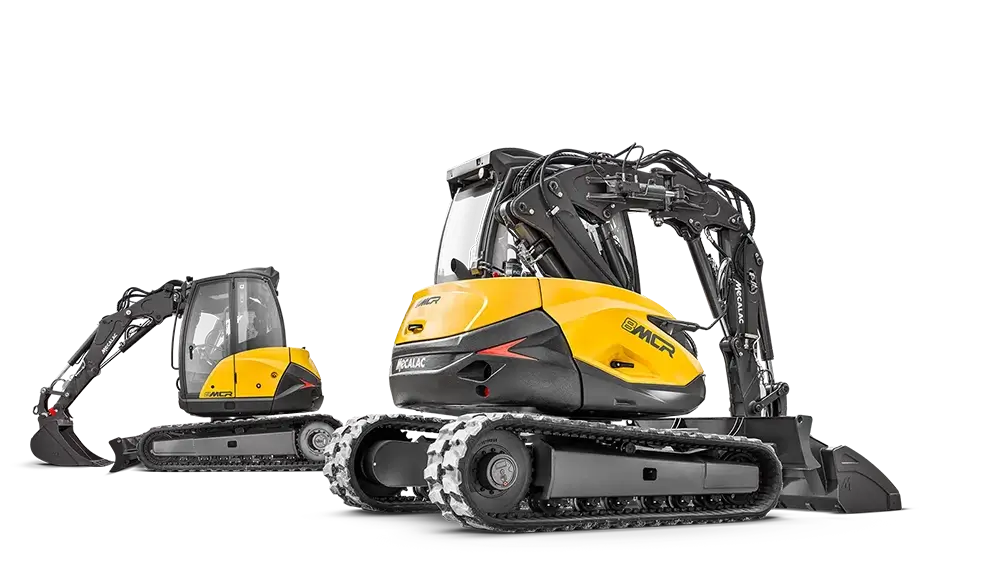

CRAWLER SKID-EXCAVATORS
the speed of a loader...
Combined With The Rotation Of An Excavator
Speed
That’s Mecalac unique innovation in motion.

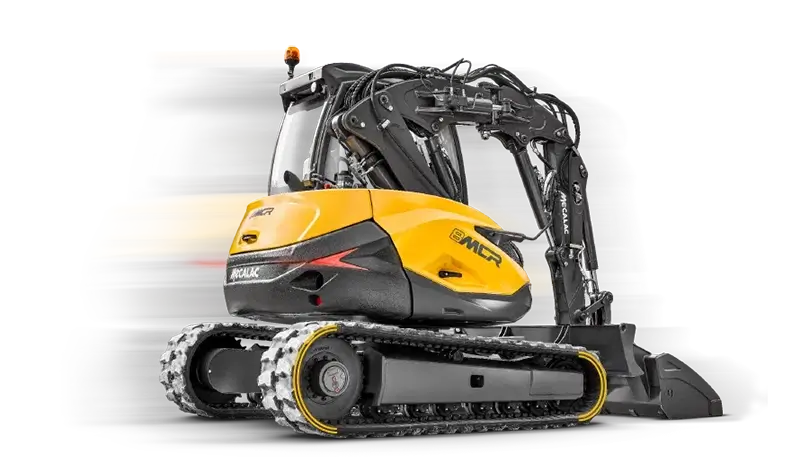

100% faster than any small excavator
Their MCR models are 100% faster than any small excavator, capable of traveling at speeds of up to 10 km/h (6.2 mph), which is double the speed of traditional small excavators. This increased speed significantly reduces the time spent moving across the job site, leading to shorter cycle times. As a result, there are fewer delays for coworkers waiting for the excavator to arrive, which adds more value to the overall workflow.
Moving up to 0.75m³ at 10km/h
MCRs are more than just fast; they are designed to efficiently move larger volumes of cubic meters (m³) compared to traditional excavators. Our hydrostatic transmission motors are powerful enough to handle any task. By resting the bucket against the blade, we remove any limitations on the movement of the boom and stick.
Productivity
Move more at each bucket
The right bucket size for fast works.
Would you choose to keep your 0.30 m³ (0.39 yd³) bucket if you had the option to use a larger 0.53 m³ (0.69 yd³) one?

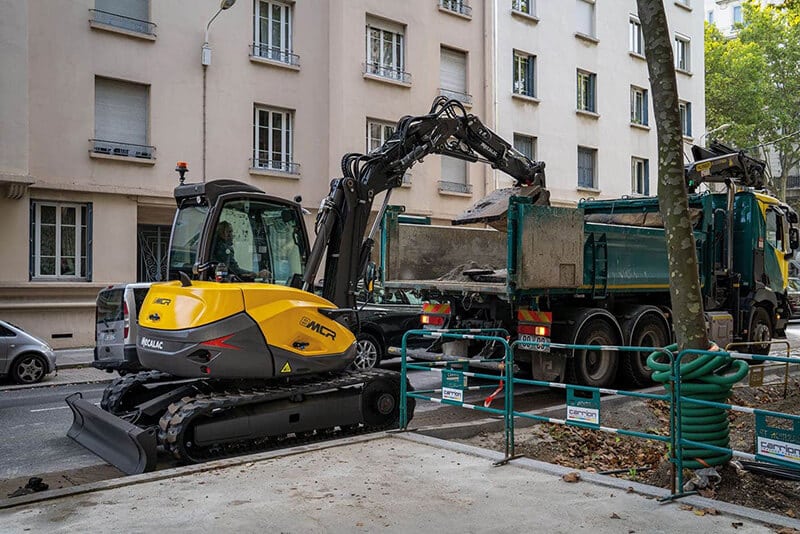

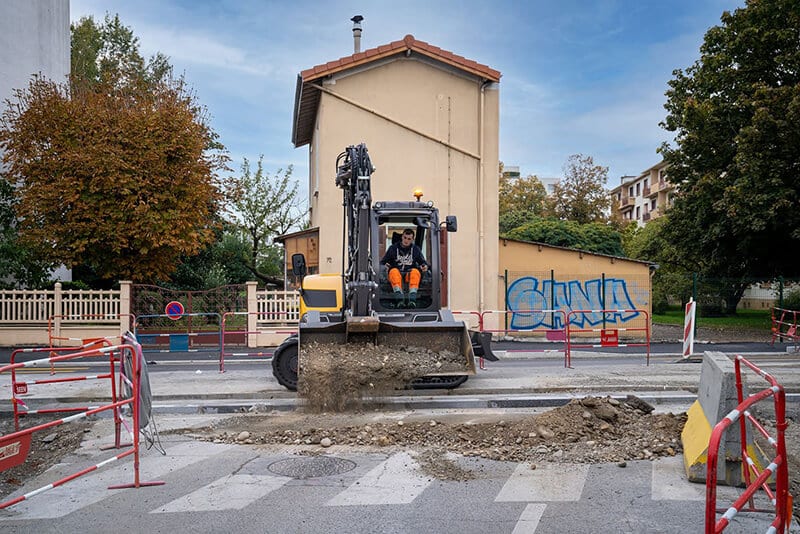

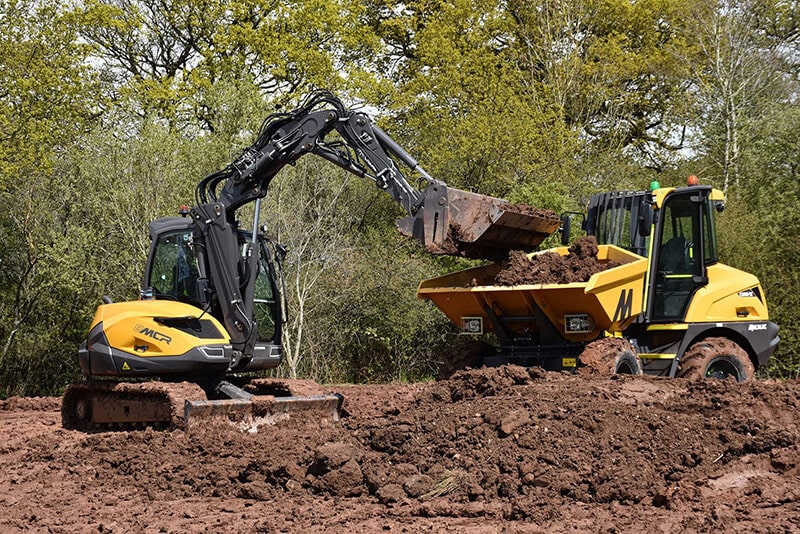

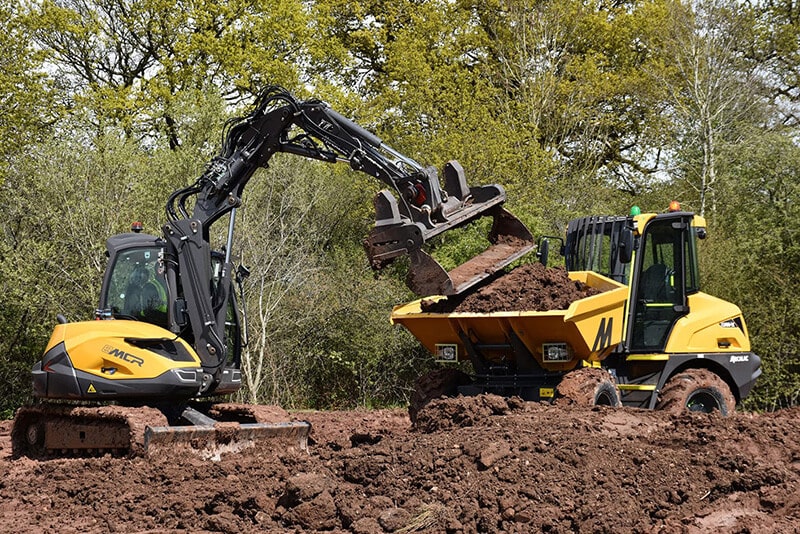

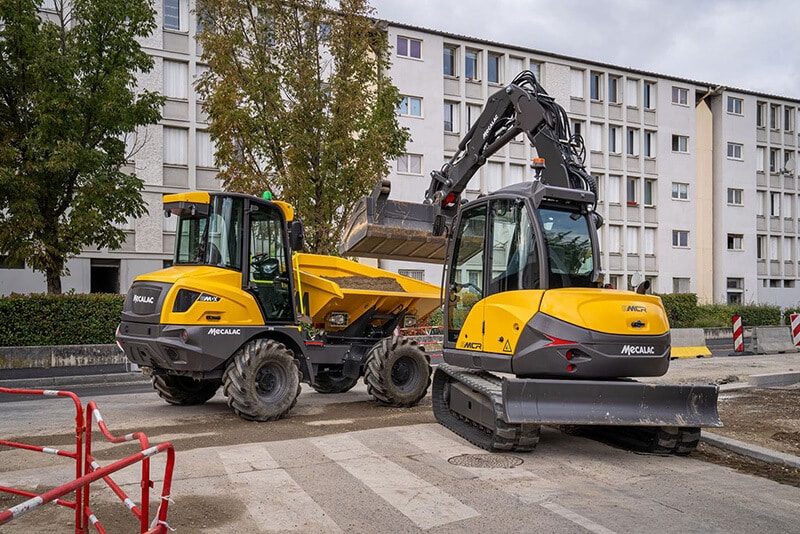

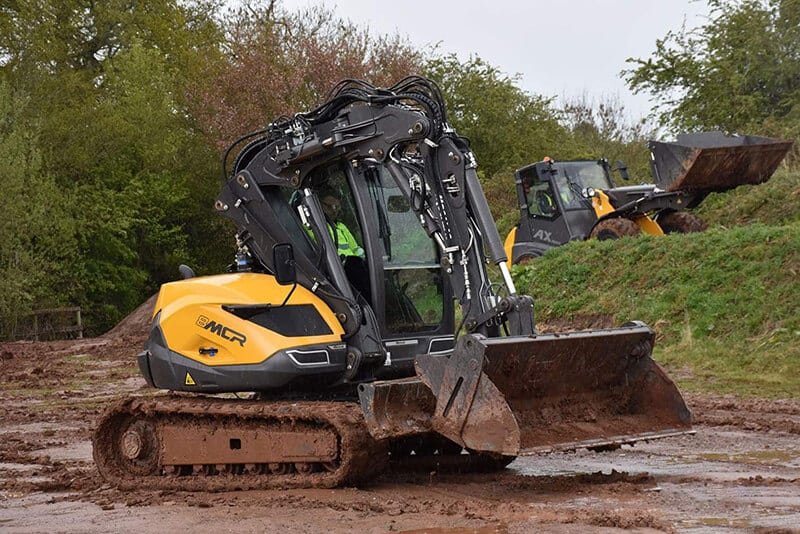

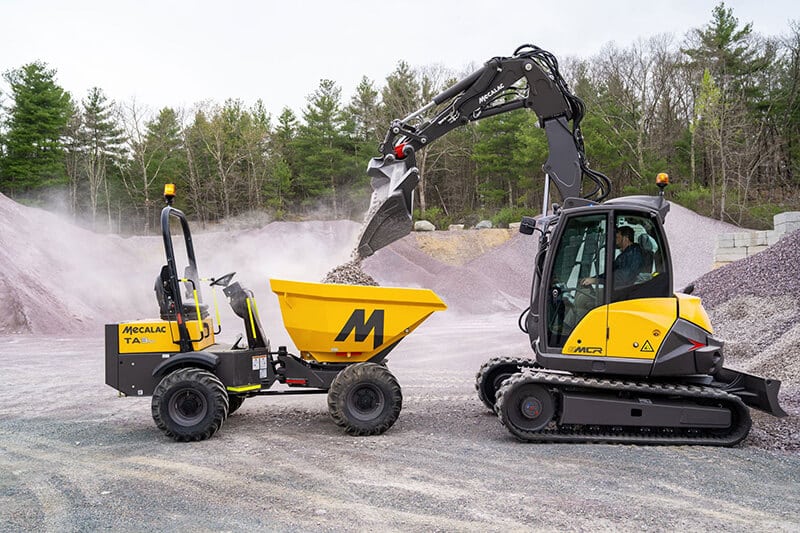

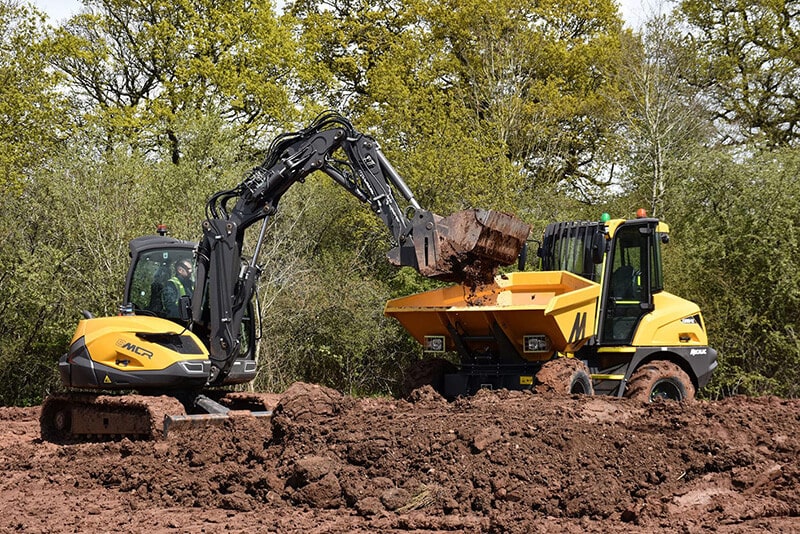

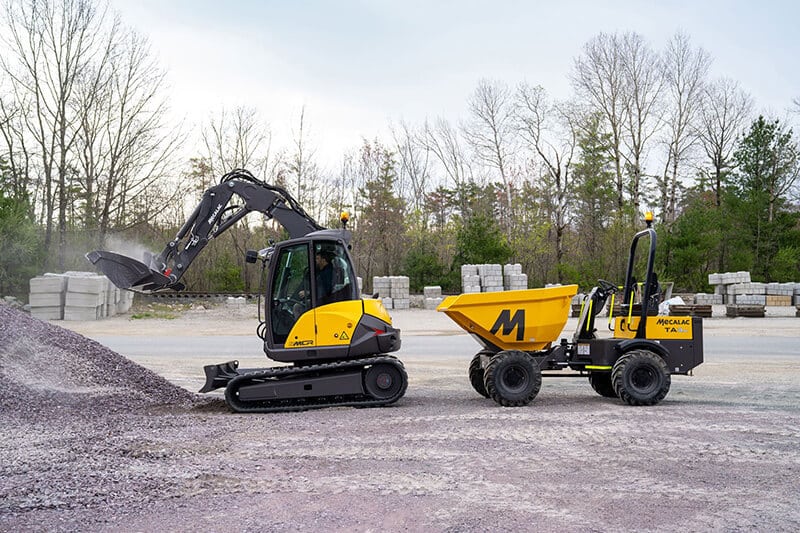

Equipping your MCR (Multi-Carrier Robot) with a skid bucket can help reduce the number of passes needed when loading a truck or allow you to spread dirt directly into a trench while moving forward to refill. There is nothing faster or easier than finely grading the ground level, just like a compact loader. This is yet another way to significantly reduce your total cycle times.
Do you need to push heavy loads? No problem!

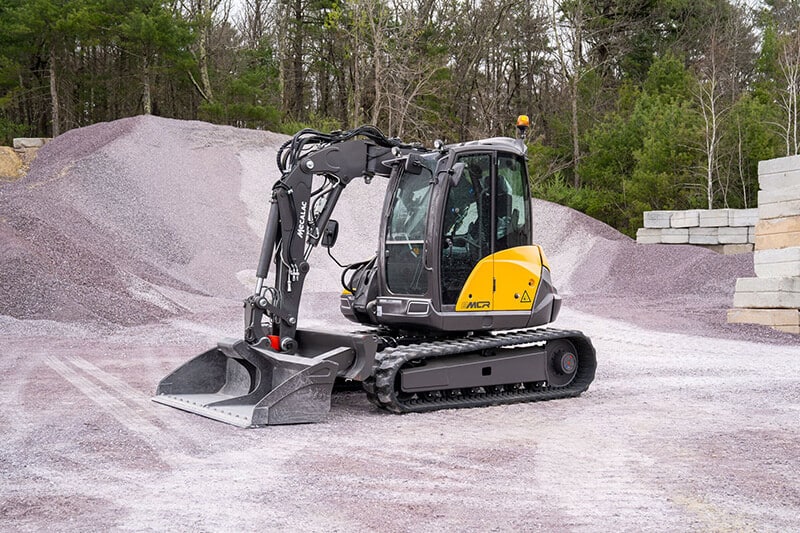

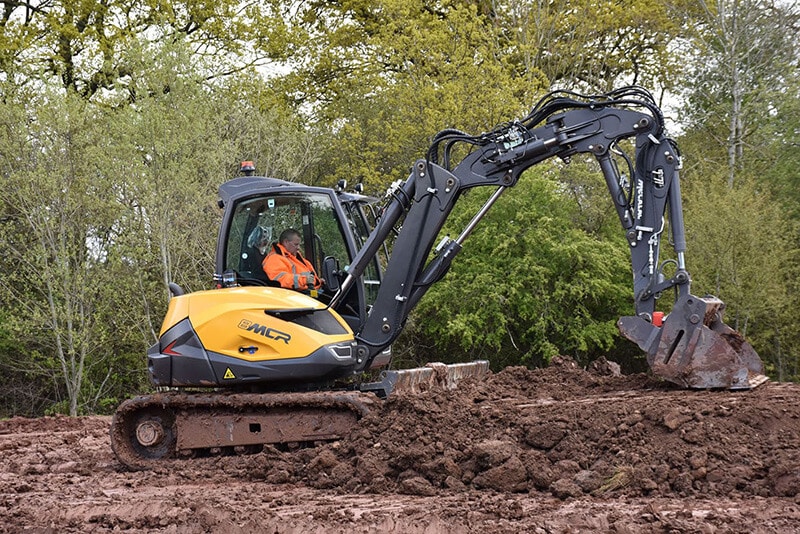

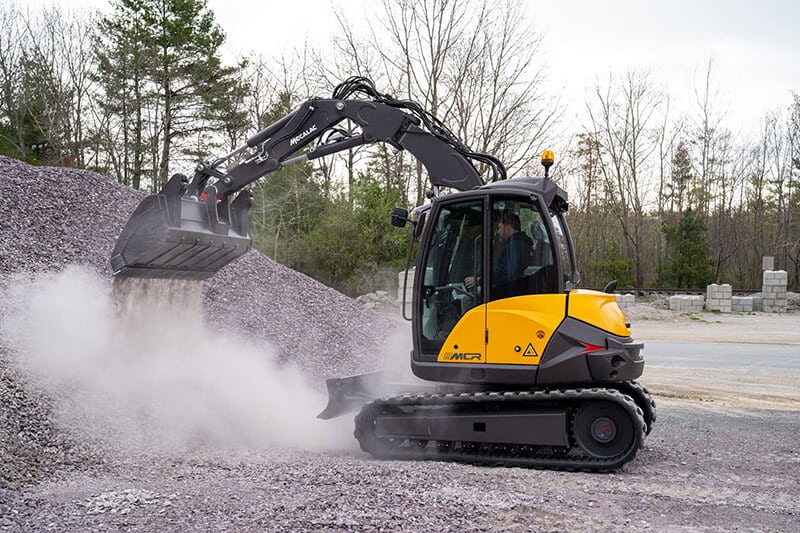

Simply place the skid bucket against the blade and push; the force from the undercarriage is transferred directly to the bucket, thereby increasing your loading capacity.
360°
Compactness

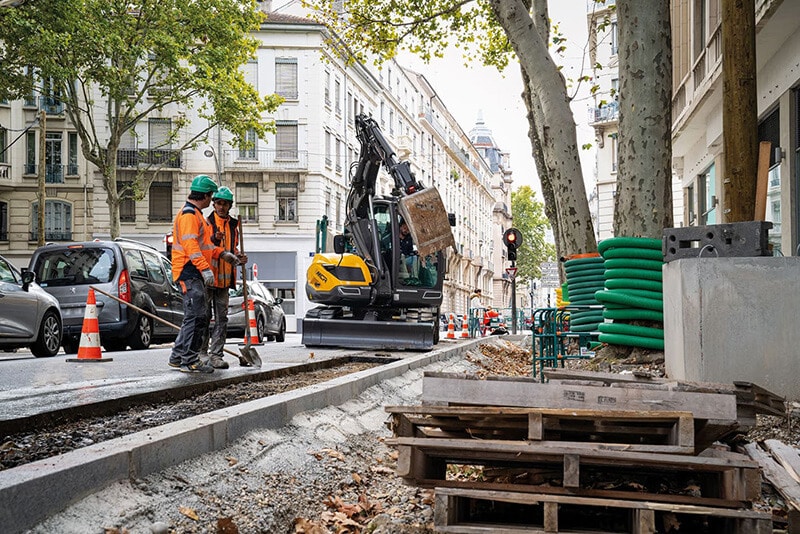

Why would you invest in something smaller if it is still cumbersome?

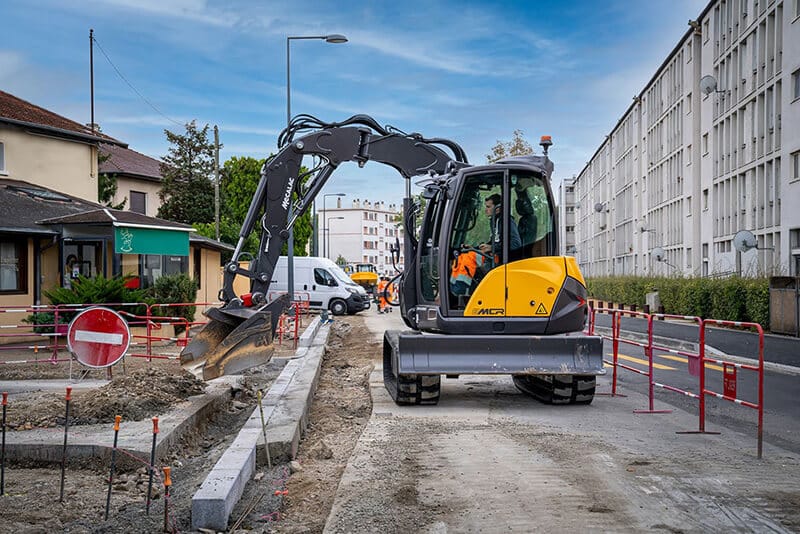

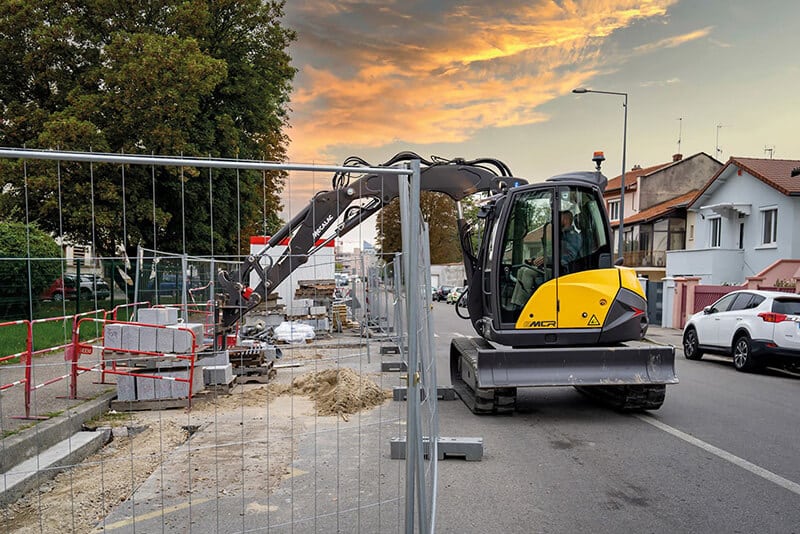

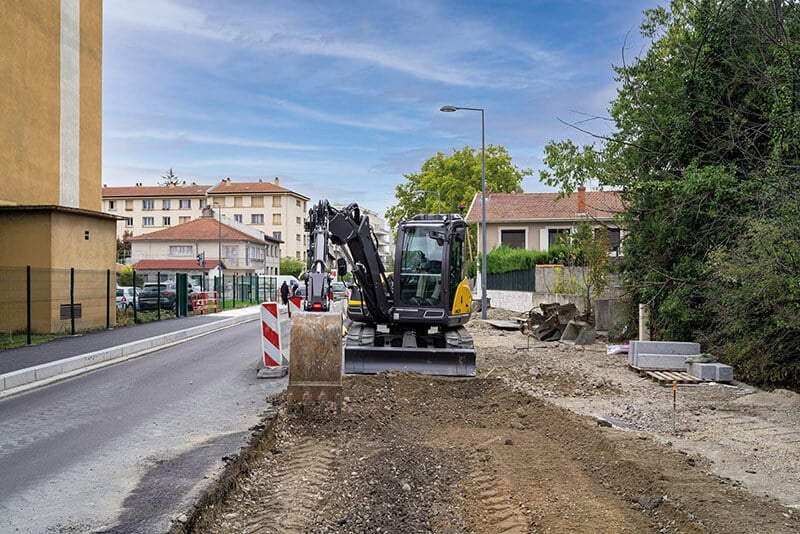

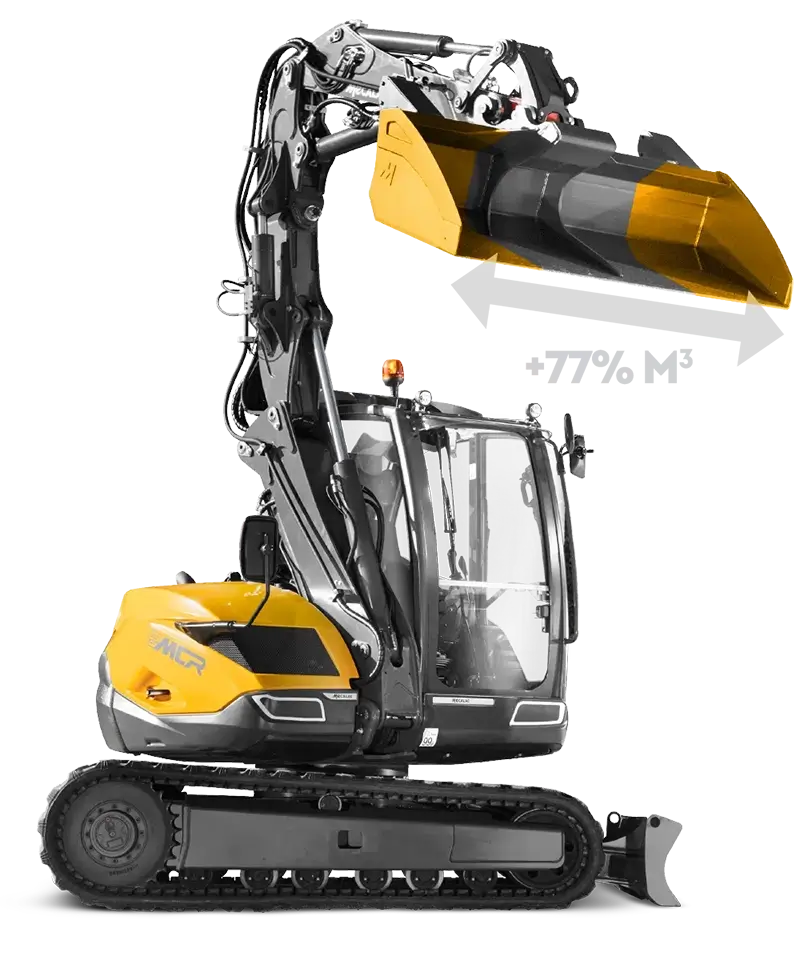

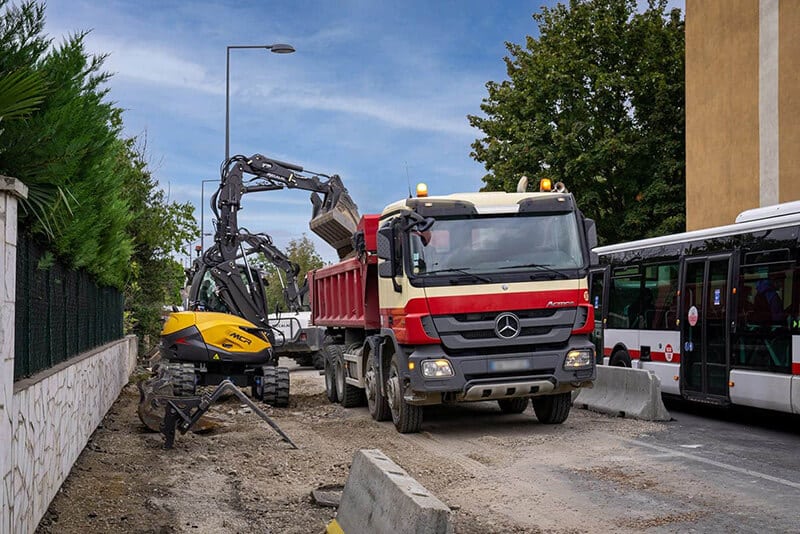

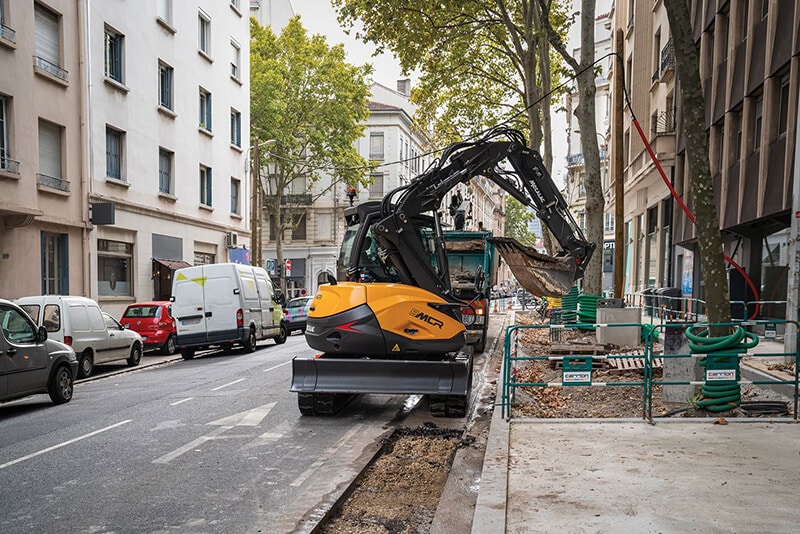

When working on a tight and congested worksite, space is limited in every direction. This is also true for our excavators, which are designed to be compact not only at the rear but also at the front and overhead. Achieving true 360° compactness allows you to fully benefit from a compact machine, enhancing both manoeuvrability and stability. By fully retracting the boom, the reduced weight at the front helps maintain balance.
VIDEOS
Specifications
| Total operating weight | 7200 kg (15,900 lb) / 7600 kg (16,755 lb) |
| Engine power | 55,4 kW (75hp - 74.3 imperial hp) |
| Tail swing radius | 1254 mm (4’1”) |
| Minimum full swing diameter | 2698 mm (8’10”) |
| Travel speed | 10 km/h (6.2 mph) |
| Motorisation | Deutz |
| Bucket volumes | 0,53m³ (0.69yd³) |

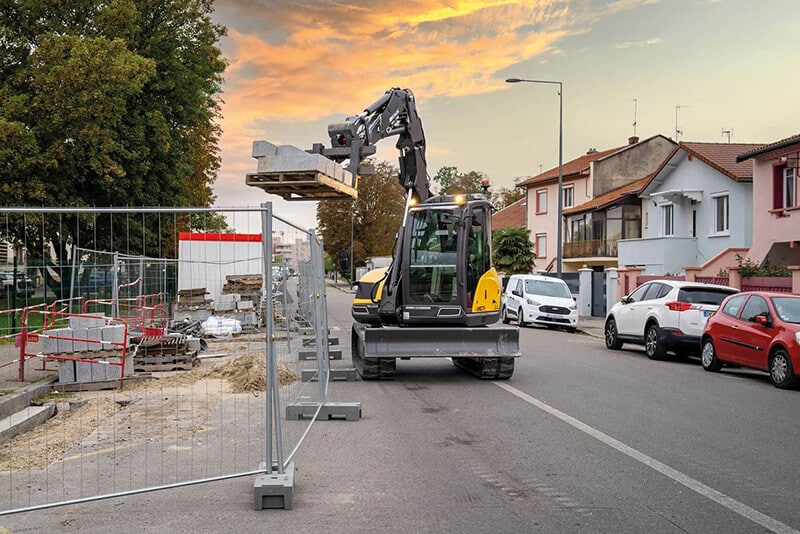

| + and - with forks | + 5200 mm (+17’05”) / - 3000 mm (-9’10”) |
