WHEEL LOADERS
4 wheel steered
loader

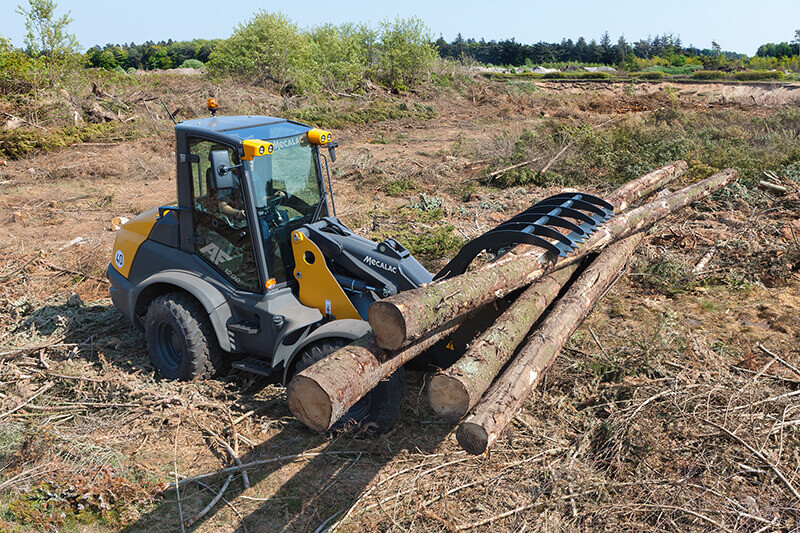

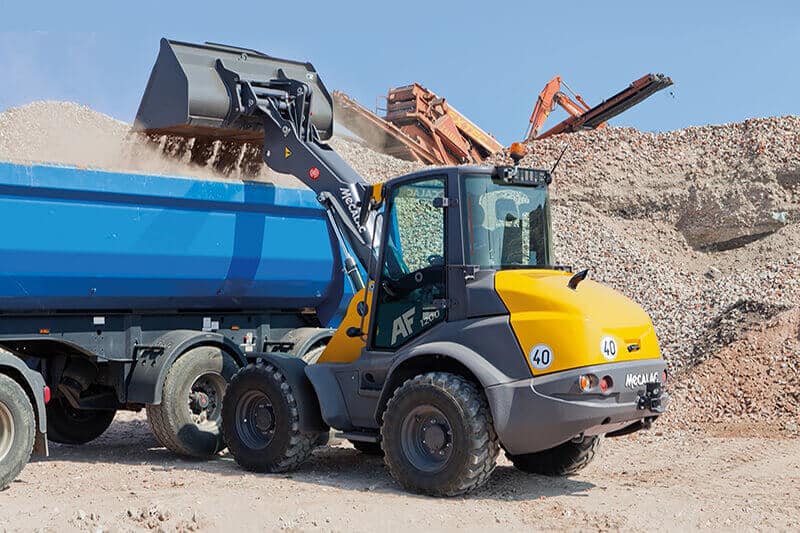

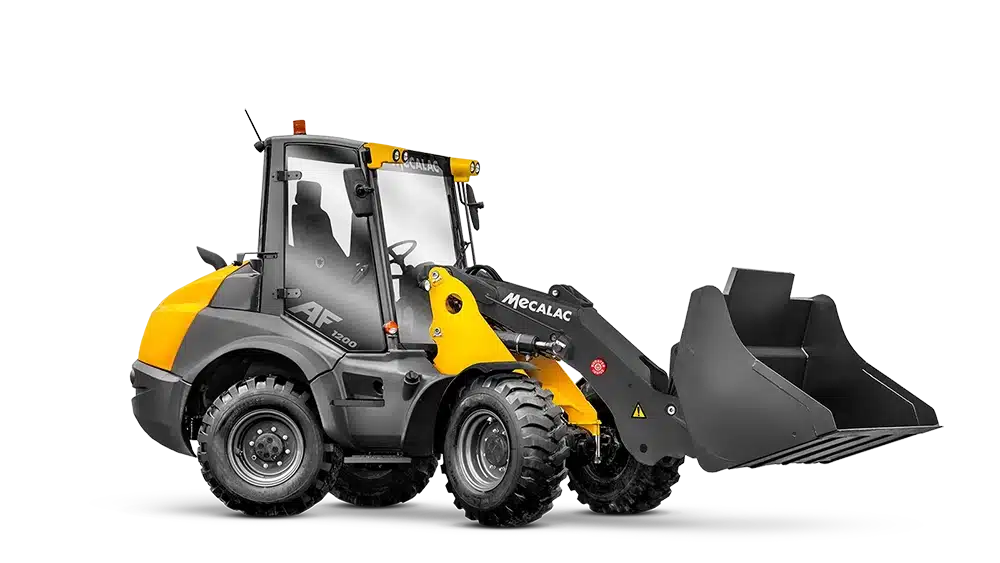

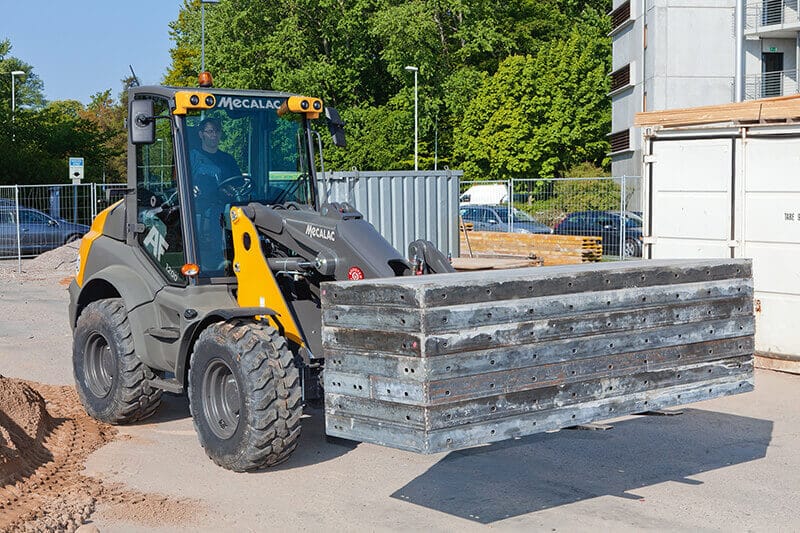

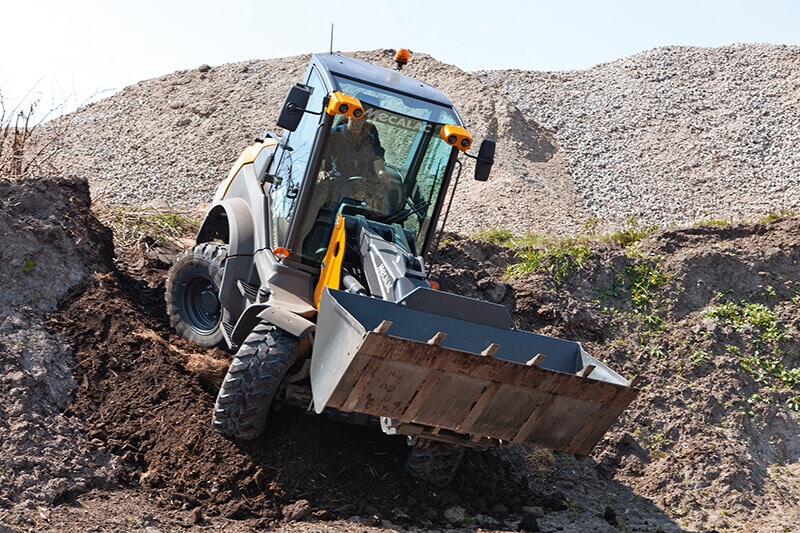

The 6-ton AF1200, with a bucket volume of 1.2 to 1.7 m³, is part of the new Boosterline series. Its Monoboom design, featuring Z-kinematics, provides a greater tear-out force and precise parallel guidance when using pallet forks. With the Boost function, the unique kinematics enhance the lifting force by 17%. The four-wheel steering system, equipped with automatic steering adjustment, ensures maximum stability and manoeuvrability. Additionally, an intelligent cooling system extends the cleaning intervals for the cooler.
VIDEOS
Specifications
| Total operating weight | 6000 kg (13,230 lb) |
| Engine power | 55,4 kW (75 hp - 74.3 imperial hp) |
| Overall width | 2100 mm (6’11”) |
| Bucket volumes | 1,20 – 2 m³ (1.60 – 2.60 yd³) |
| Standard bucket volume | 1,20 m³ (1.60 yd³) |
