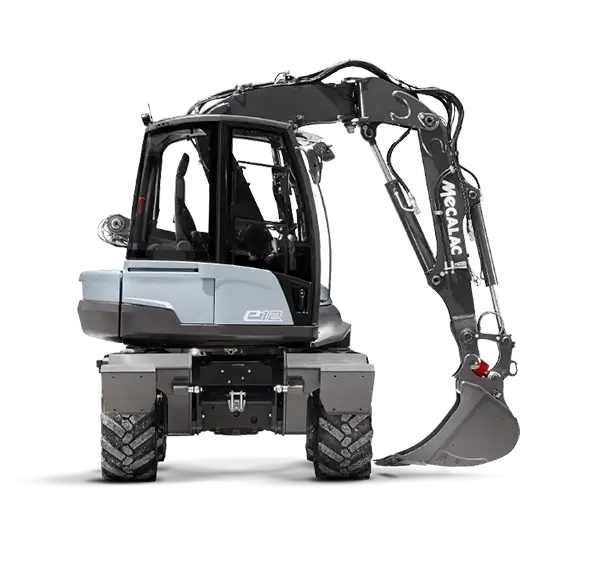

ZERO EMISSIONS EXCAVATORS
The first
Mecalac
zero emission
11-t excavator
INNOVATION TODAY

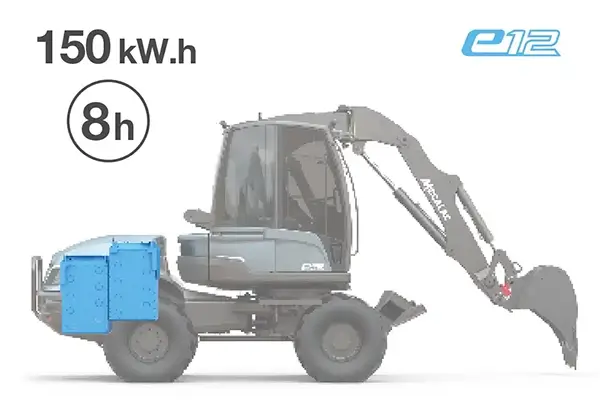

The electric version of the 12MTX aligns perfectly with Mecalac’s commitment to creating urban construction sites that are increasingly compact, efficient, and environmentally friendly. The design of the diesel 12MTX serves as a natural precursor to the electric version, as it allows for the seamless integration of Lithium Nickel-Manganese-Cobalt (NMC) battery technology in place of the engine.
This advanced battery technology offers superior weight-to-power ratios and excellent quality compared to conventional batteries, along with an optimized service life and enhanced safety.
Autonomy
Less means more
The Mecalac e12 can be fully charged in just 8 hours. It delivers powerful performance throughout the day, providing 8 hours of uninterrupted operating time without the need for a recharge.
With the Mecalac e12, you benefit from reduced vibration and noise levels, minimal maintenance requirements—no filters or oil needed—lower risk of on-site accidents, and significantly reduced maintenance costs. Plus, it produces no CO2 or particulate emissions, making it an environmentally friendly choice.
Performance
A new direction for urban jobsites

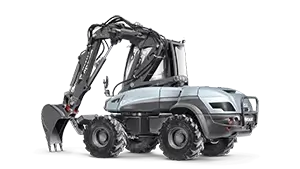

The Mecalac e12 is specifically designed for urban environments, featuring a structure that caters to city operations. Equipped with two independent electric motors—one for the front linkage and work tools and the other for the transmission—it is ideal for urban machine fleets.
In addition to its performance and operational autonomy, the e12 boasts a 100% electric transmission that delivers unmatched traction force from the moment it starts, along with energy regeneration during braking. The exceptional power density of the electric motors allows for a remarkably compact design, and they require no maintenance.
Autonomy
Freedom of movement

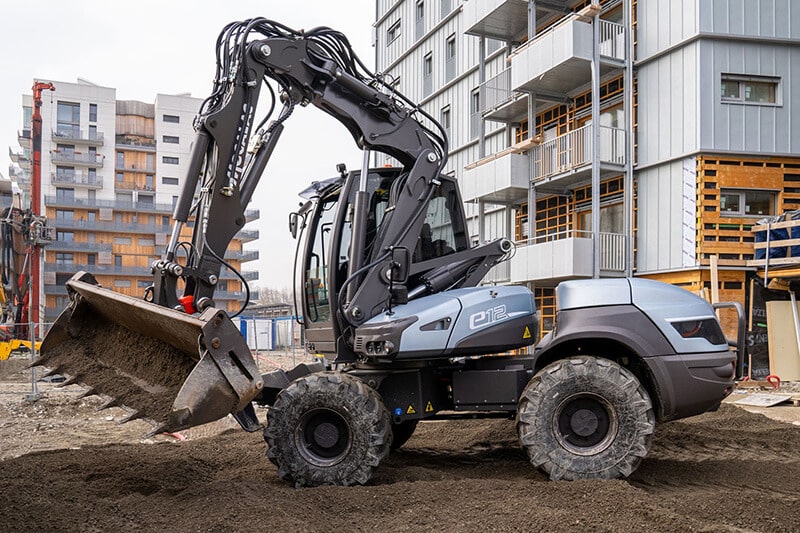

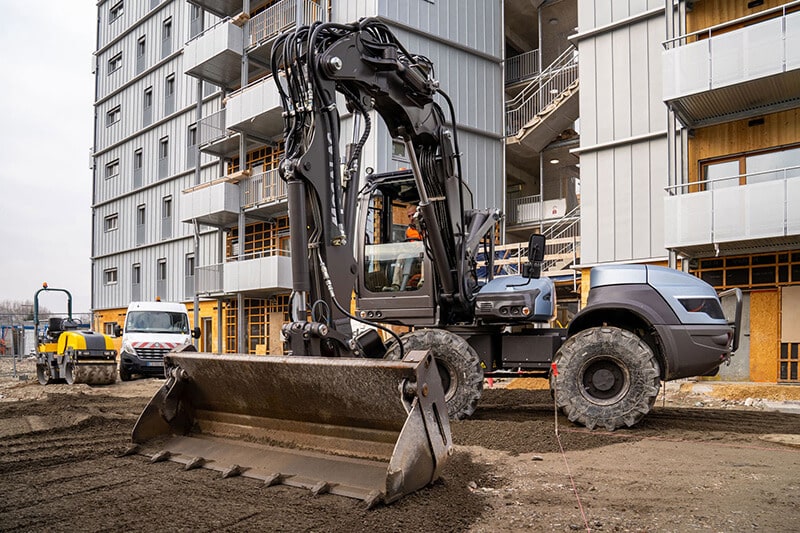

With a full 360° swing diameter of only 2710 mm (8’11’’), a 2.25 m (7’4’’) turning radius at wheels and an outstanding boom tilt angle (140°), the e12 only needs one road lane in urban areas to carry out its work. Traffic can continue with only a minimum of interruptions while the operator is able to work closer to the various obstacles he may come across.

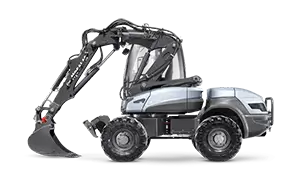

Efficient, the e12 offers compactness, while capitalizing on all its functionalities and capacities with a minimal impact on city environments. Its articulated chassis allows it to move easily on any job site, and its agility also contributes to its overall performance.
Specifications
| Total operating weight | 11 300 kg (24,912 lbs) |
| Rated storage capacity | 150 kWh |
| Power supply | 32A 380V three phase (22kW) |
| Battery runtime | 8 hrs |
| Tail swing radius | 1385 mm (4’6’’) |
| Minimum full swing diameter | 2770 mm (9’1’’) |
| Travel speed | 25 km/h (15.5 mph) |
| Motorisation | Electric |
| Overall width | 2383 mm (7’8’’) |
| + and - with forks | + 6000 mm (+19’8”) / - 3700 mm (-12’1”) |
| Maximum reach | 7125 mm (23’4”) |
