Single Drum Rollers
Break out – Roll over

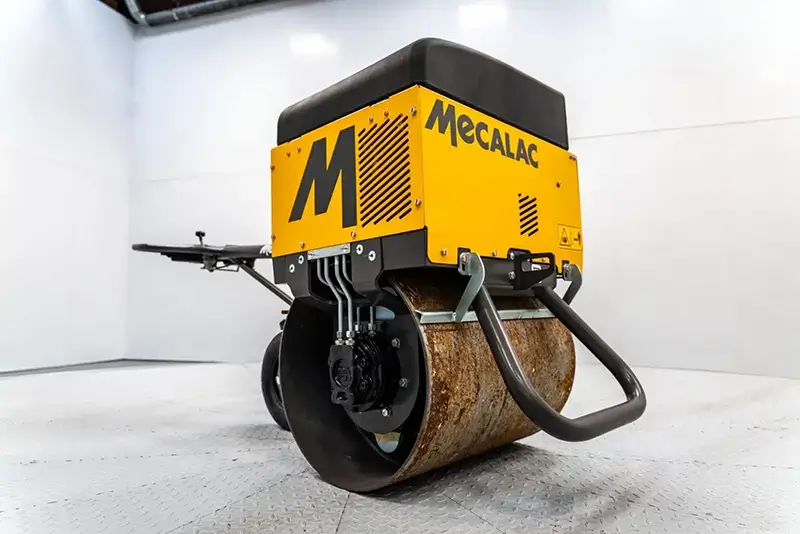

Built for the compaction of granular and asphalt materials, Mecalac Pedestrian rollers provide class-leading performance for variety of industries including highway repair, footpaths, cycle lanes, playgrounds and landscaping environments. The proven design provides superb balance, making it easy to manoeuvre in tight spaces.

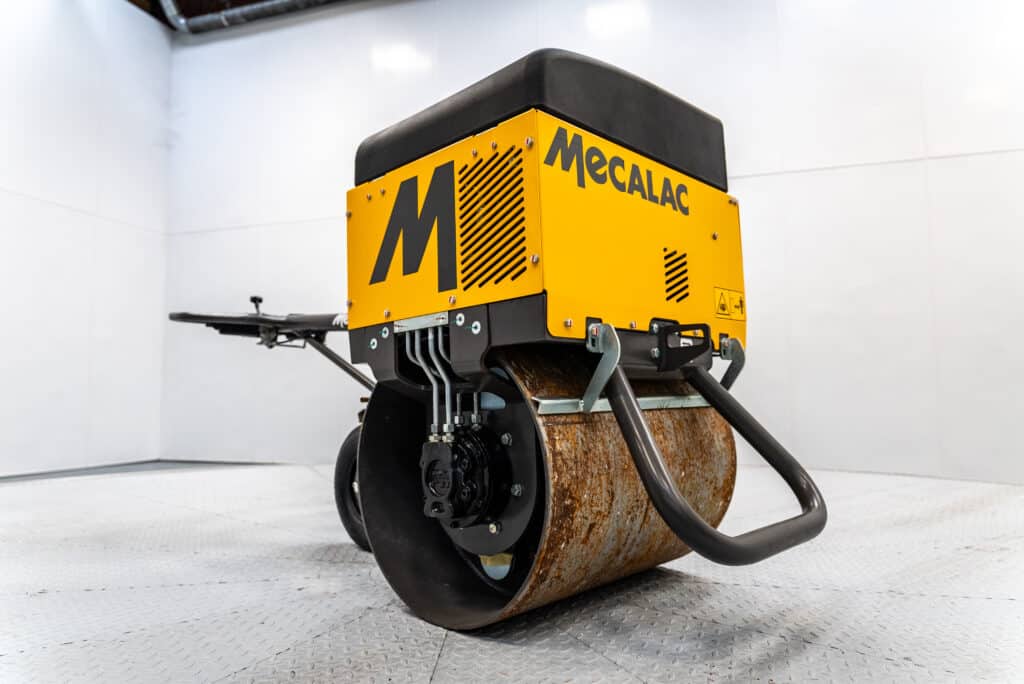

Rubber couplings in the drum reduce vibration transfer for low hand-arm (HAV) levels for additional comfort. The MBR-71 is fitted with a ‘hold to run’ handle so that the hydraulic drive cuts off if the control lever is released.

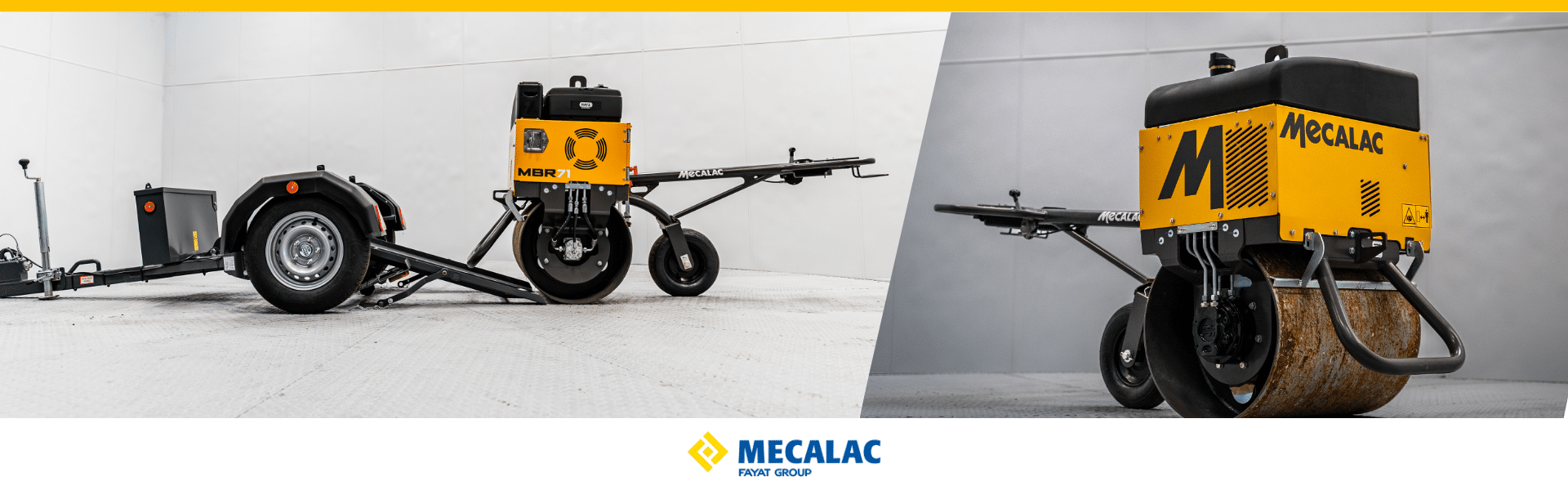

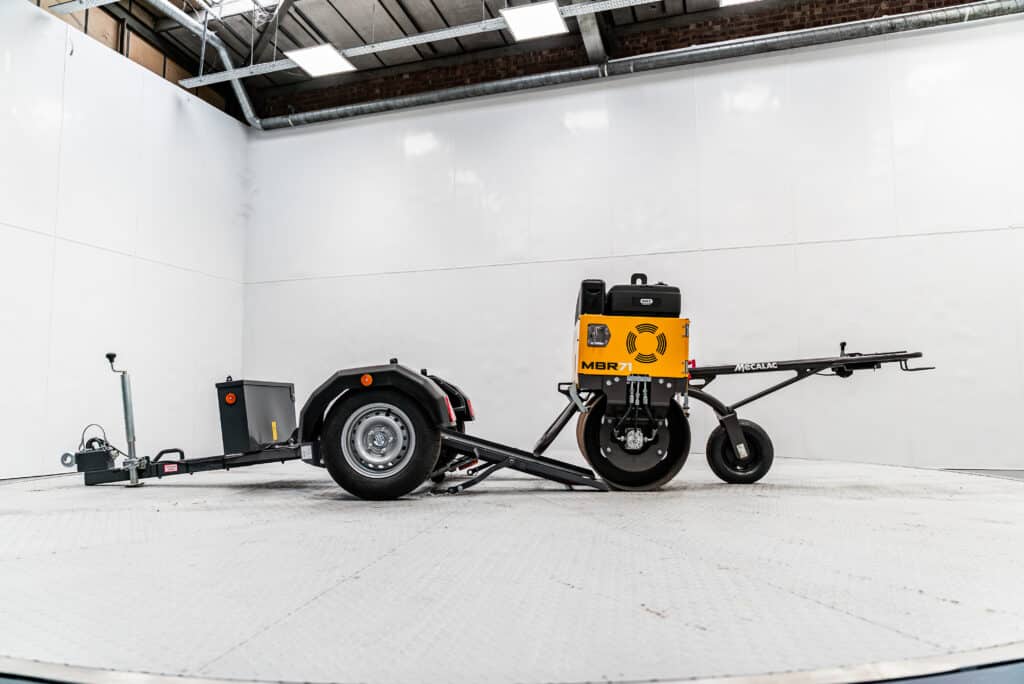

For added versatility the Mecalac MBR-71 roller features a high quality tow-behind trailer and hydraulic breaker combination. The hydraulic breaker is ideally suited to asphalt repair work for breaking out damaged materials prior to resurfacing.
VIDEOS
Specifications
| Total operating weight | 513 kg (1,130 lb) |
| Engine power | 7,3 kW (9.8 hp) |
| Travel speed | 4 km/h (2.5 mph) |
| Overall width | 772 mm (2’6”) |
| Overall length | 2187 mm (7’2”) |
| Drum width | 710 mm (2’4”) |
| Centrifugal force | 1500 daN (3,372 lbf) |
| Frequency | 65 Hz (3,900 VPM) |
| Static linear Load | 7,2 kg/cm (40.3 lb/inch) |
| Amplitude | 0,57 mm (0’02”) |
