TA - 1 TO 3.5 TONS
High achiever

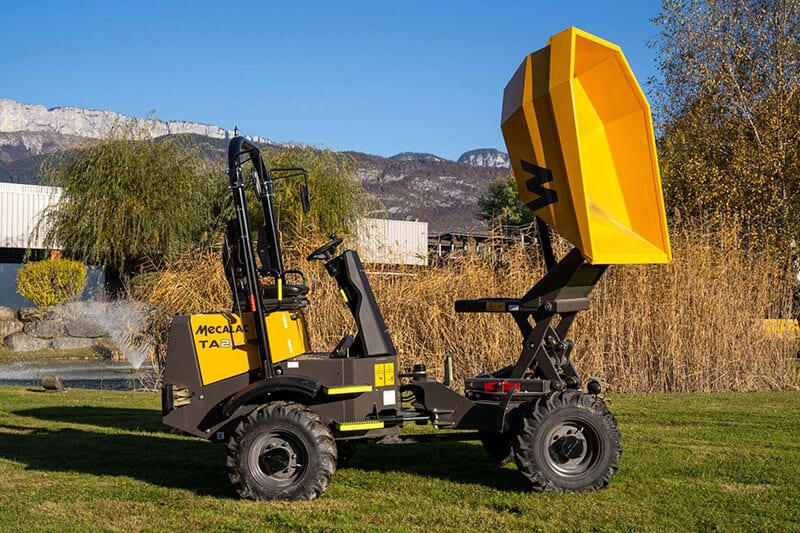

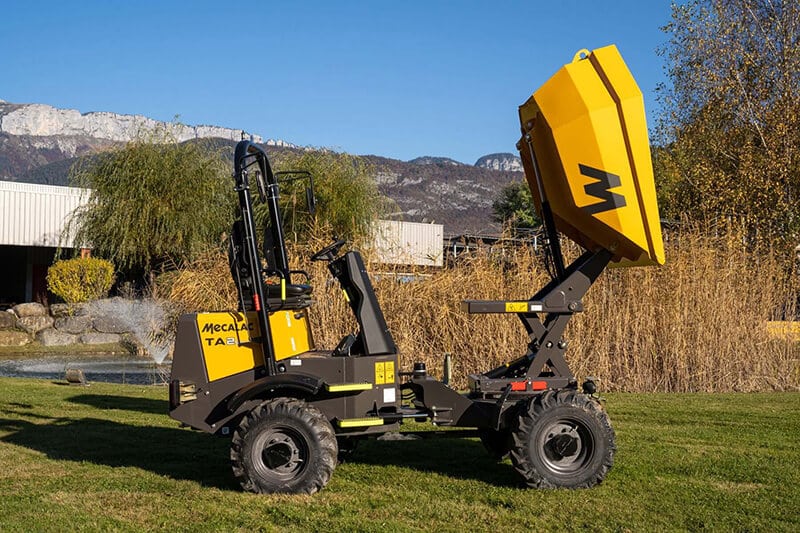

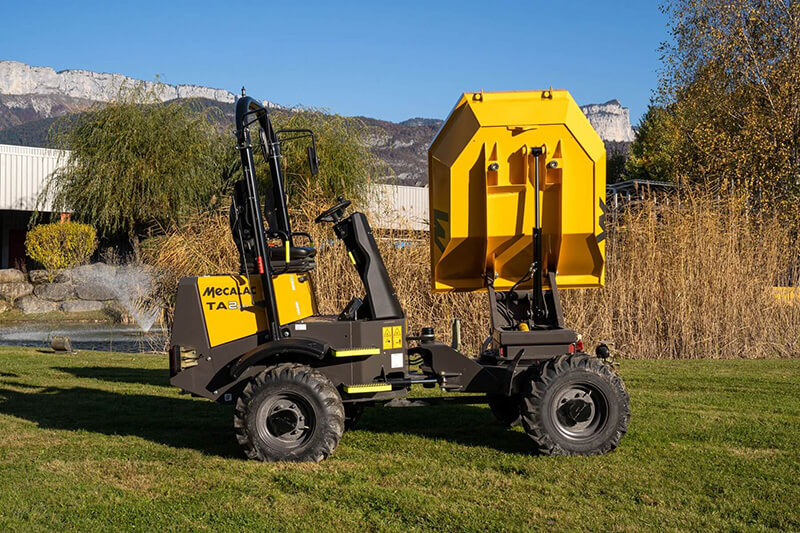

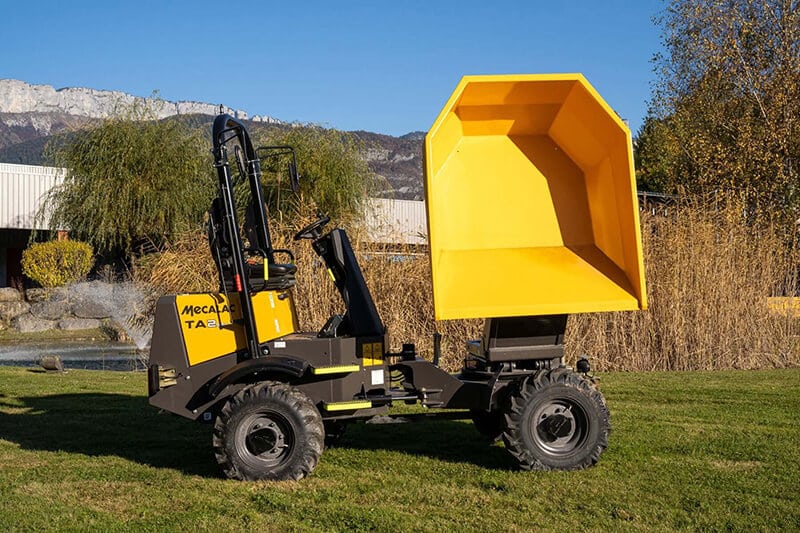

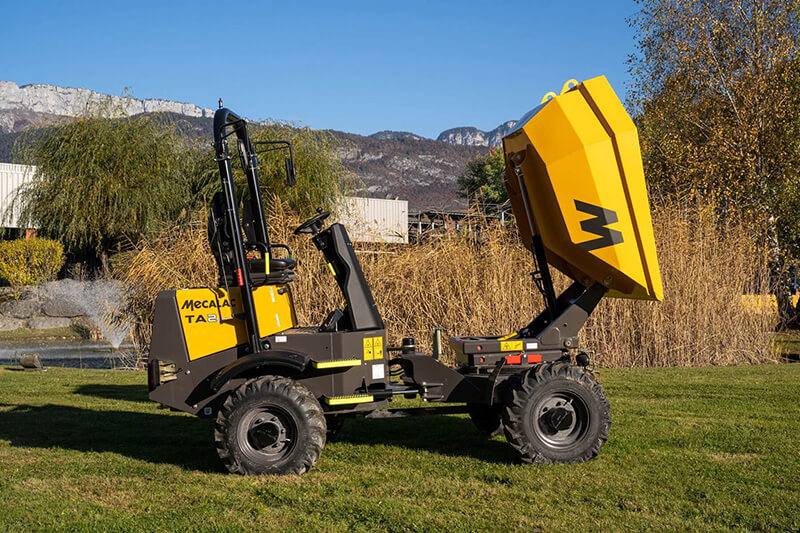

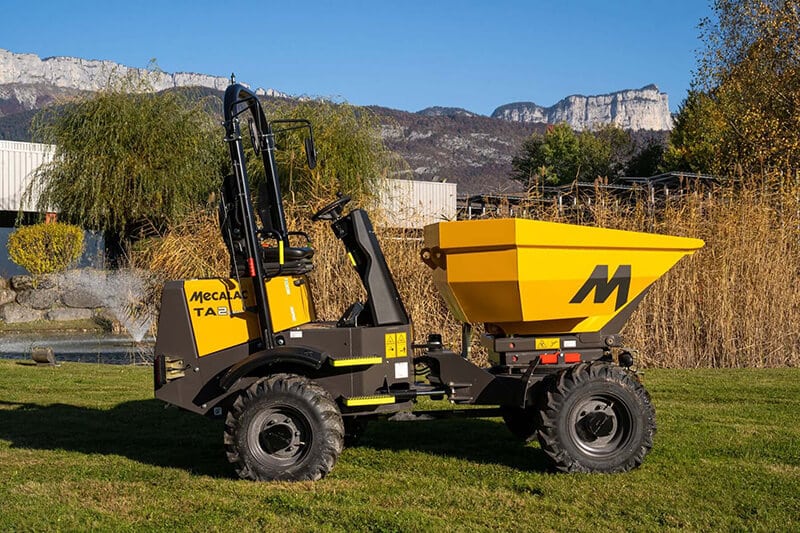

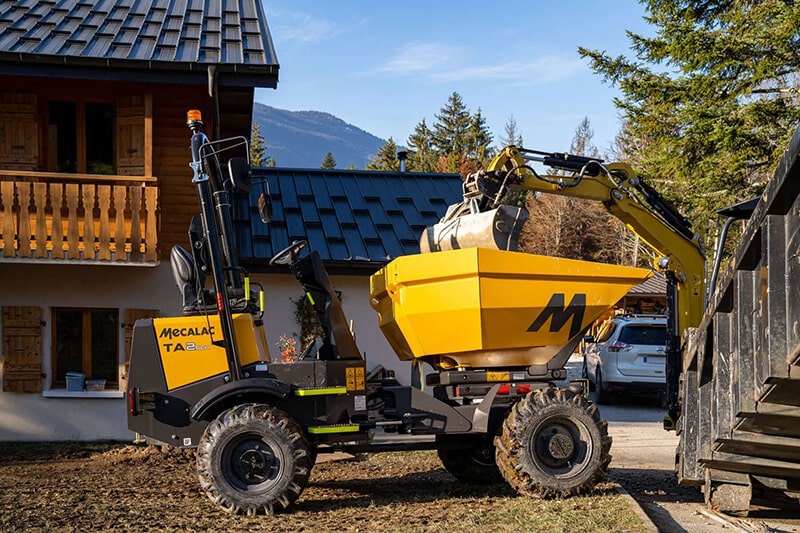

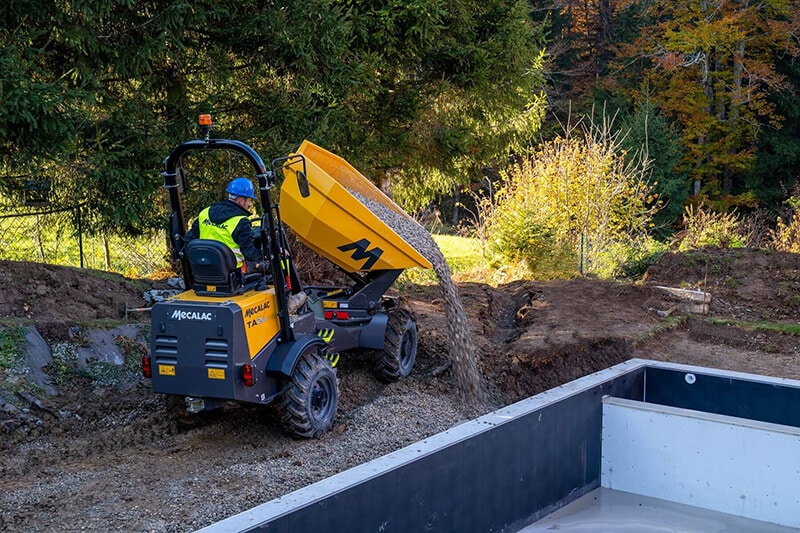

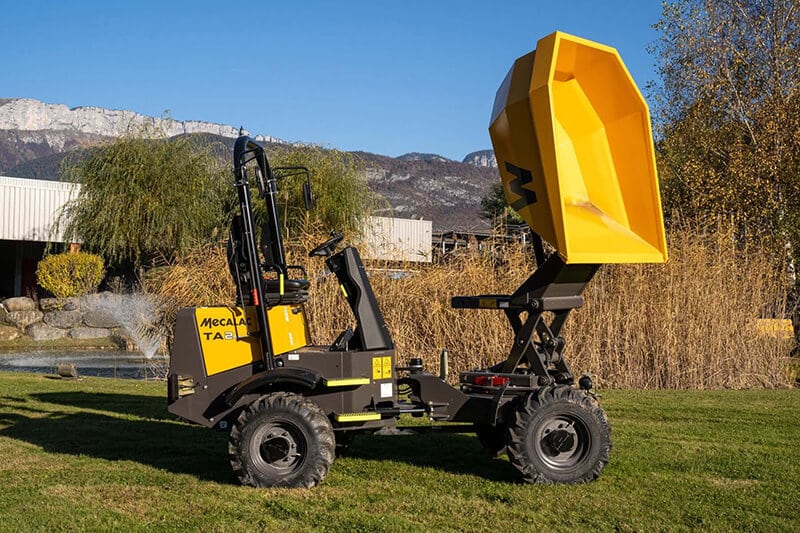

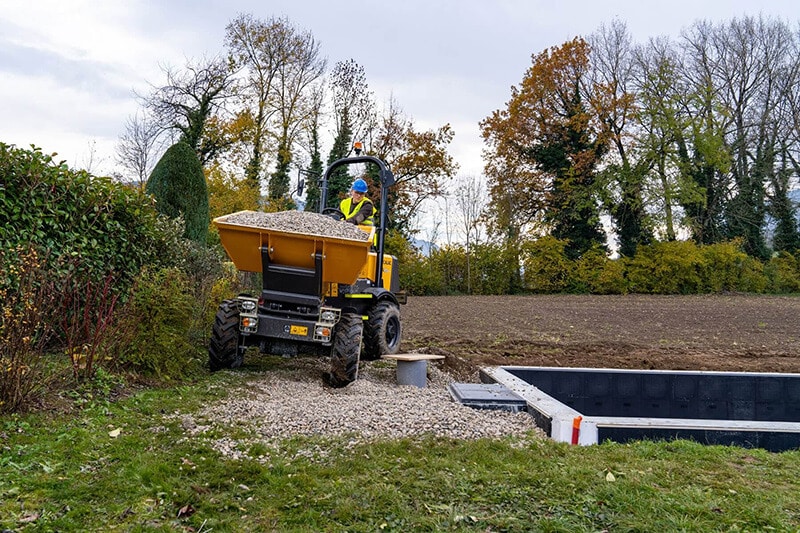

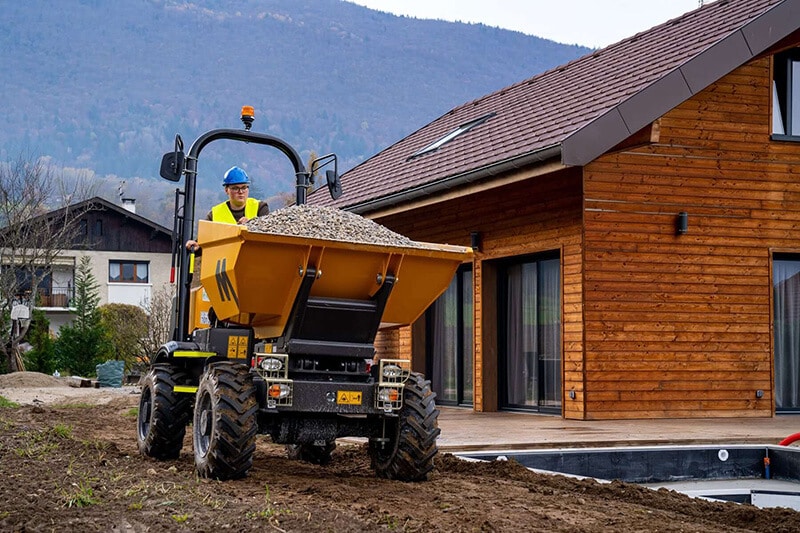

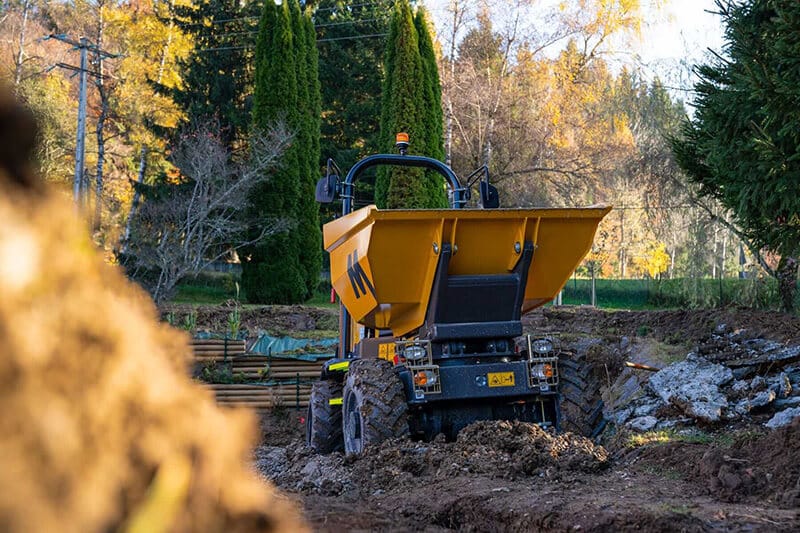

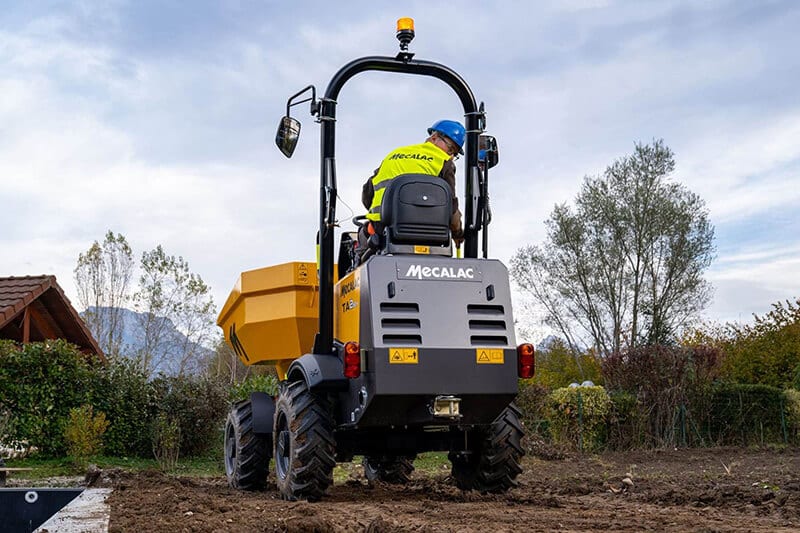

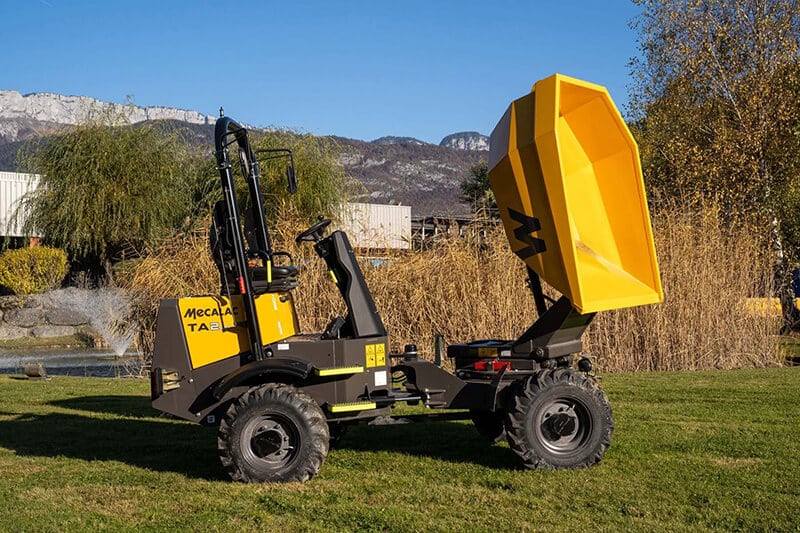

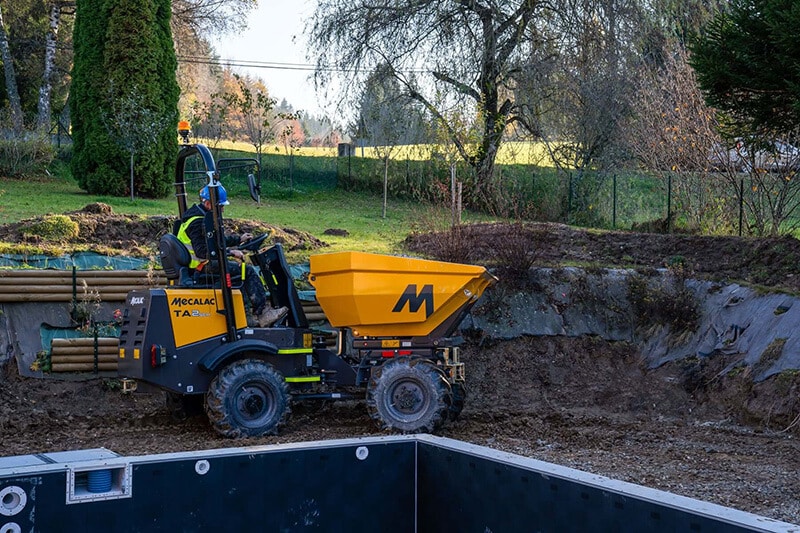

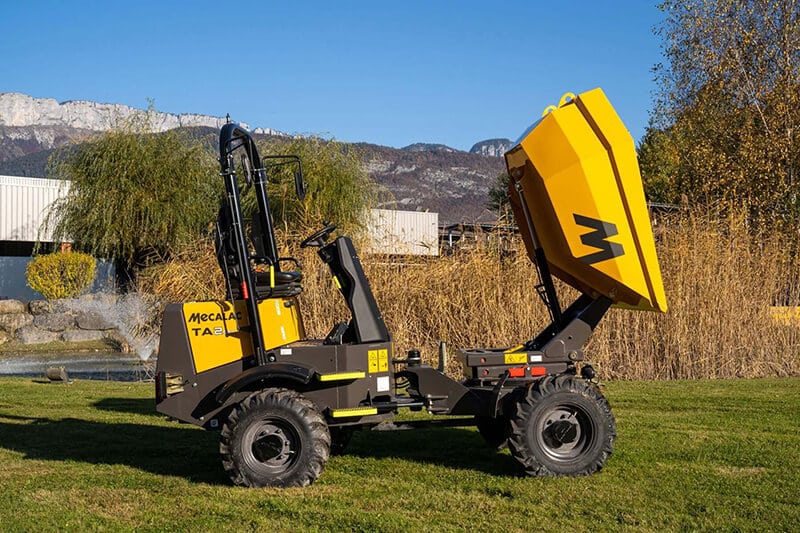

With a skip payload of 2000kg and an optional 180-degree power swivel tip skip (TA2SH) or an elevating swivel tip skip (TA2SEH) the TA2 range can fit the requirements of many small job sites. The Hydrostatic transmission delivers smooth and uninterrupted power for the operator. Simple user-friendly controls help all operators adapt quickly
VIDEOS
Specifications
| Total operating weight | From 2175 kg (4795 lb) to 2335 kg (5148 lb) |
| Engine power | 18.5 kW (25hp) - Stage V |
| Skip type | Swivel / Swivel Elevation |
| Payload | 2000 kg (4,410 lb) |
| Maximum skip capacity (Heaped) | 1.2 m³ (1.57yd³) |
| Transmission (Road) | Hydrostatic |
| Travel speed | 18 km/h (11 mph) |
| Operator environment | ROPS foldable bar |
| Overall width | 1473 mm (4’10”) |
| Overall length | 3606 mm (11’10”) |
| Overall height | 2724 mm (8’11”) |

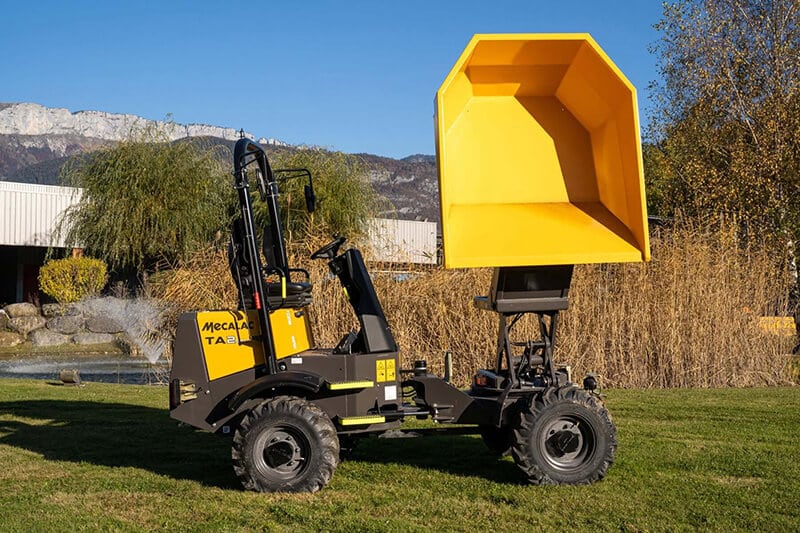

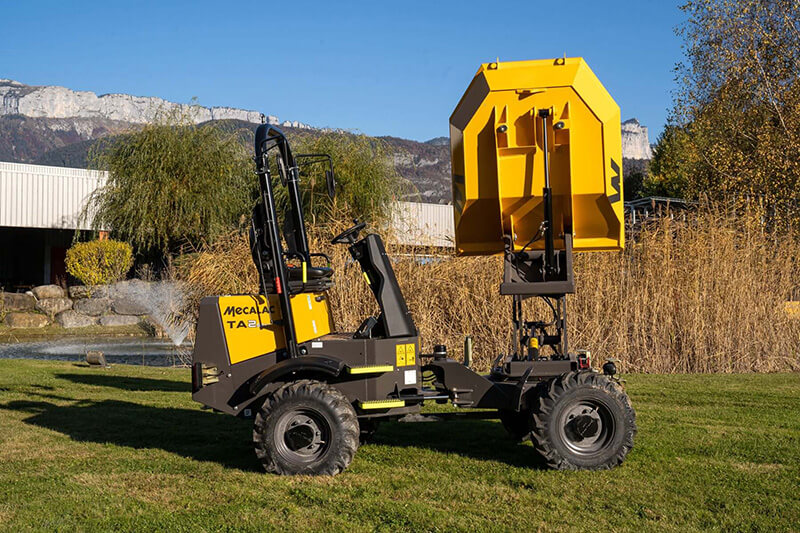

| Dumping height, skip tipped | From 993 mm (3’3”) (lowered) to 1653 mm (5’5”) (raised) |
