Backhoe Loaders - Sideshift
Performance with economy

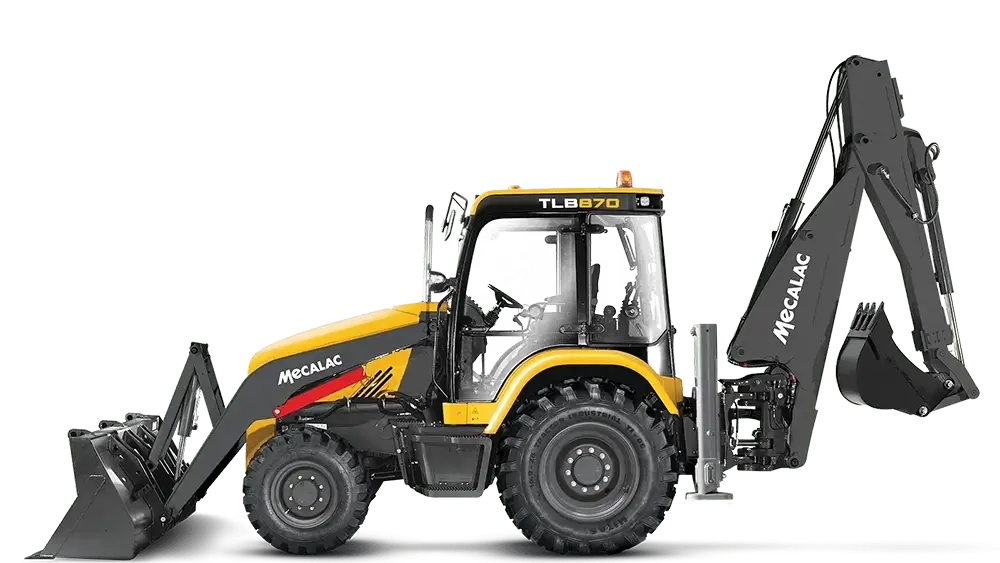

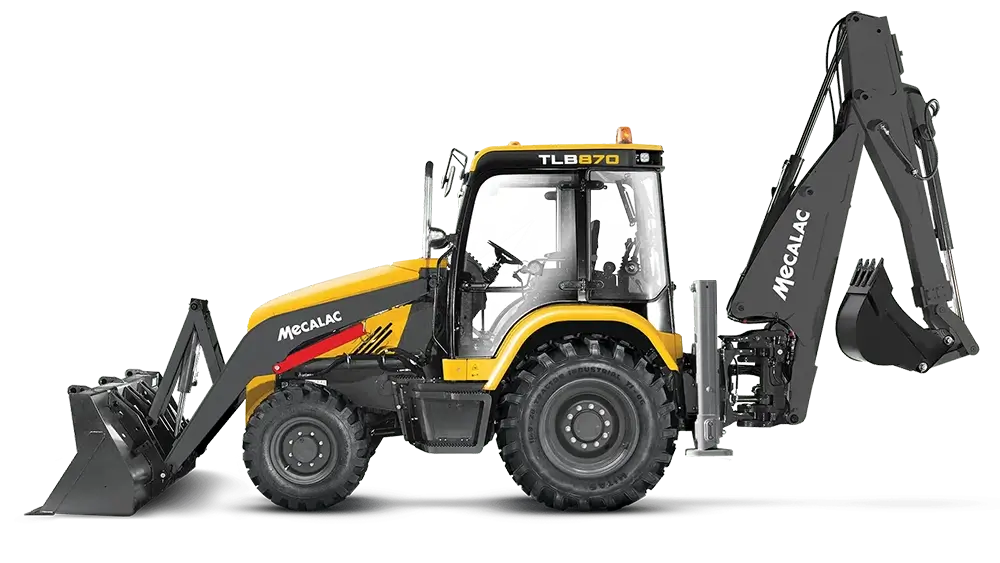

The Mecalac TLB870 is the ideal choice for your backhoe fleet requirements. The TLB870 is Mecalac’s entry-level backhoe loader and offers ease of use whether excavating, rehandling, transporting material or driving between sites. The 55kw (74hp) Stage 5 (Tier 4 final) engine meets emissions regulations without the use of AdBlue, For non-compliant regions a 70kw Stage IIIA (Tier 3) engine, both engines offer smooth power delivery and efficient operation. An intelligent and efficient ‘inloader’ hydraulic system provides automatic control of the tandem gear pump to provide improvements in fuel efficiency and control
VIDEOS
Specifications
| Total operating weight | 7695 kg (16,964 lb) |
| Engine power | 55 kW (74 hp) (EU Stage 5) |
| Turning circle | 7960 mm (25’1”) |
| Travel speed | 38 km/h (24 mph) |
| Overall width | 2310 mm (7’7”) |
| Hydraulic System | Open Centre |
| Pump Flow | 128 l/min (28 gpm) |
| Tear-out force / Loader | 4600 daN (10,341 lbf) |
| Break-out force / Loader | 4200 daN (9,442 lbf) |
| Lift height / Loader | 3509 mm (11’6”) |
| Maximum depth | 5744 mm (18’10”) |
| Tear-out force / Excavator | 4220 daN (9,487 lbf) |
| Break-out force / Excavator | 6870 daN (15,444 lbf) |
| Maximum reach | 6995 mm (22’11”) |
