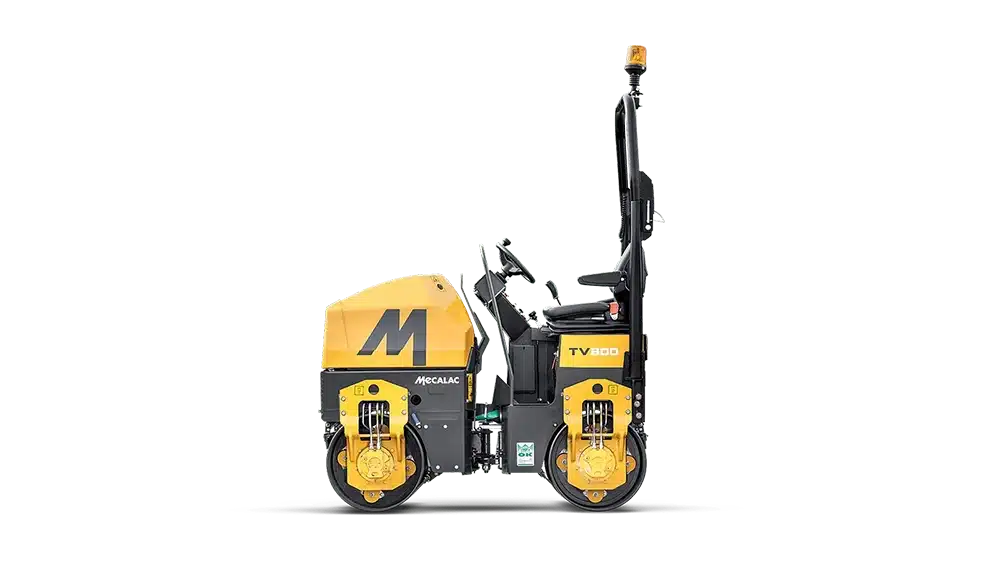

Tandem Vibratory Rollers
The Mecalac range of compact Tandem Rollers are designed for the rigorous demands of the Plant Hire industry. With an 800mm drum the TV800 is the smallest in the range of tandem drum rollers, perfect for small jobsites. Optional hydraulic breaker outlet provides 30L/min flow rate (Category 2), removing the need for an additional powerpack or compressor on site, further increasing the versatility of this compact model
VIDEOS
Specifications
| Total operating weight | 1559 kg (3,437 lb) |
| Turning circle | 5640 mm (18’6”) |
| Travel speed | 8 km/h (4.9 mph) |
| Overall width | 870 mm (2’10”) |
| Overall length | 1860 mm (6’1”) |
| Drum width | 800 mm (2’7”) |
| Centrifugal force | 1000/1250 daN (2,248/2,810 lbf) |
| Frequency | 46/52 Hz (2,760/3,120 VPM) |
| Static linear Load | 9,7 kg/cm (54.3 lb/inch) |
| Amplitude | 0,5 mm (0’019”) |
