Tandem Vibratory Rollers

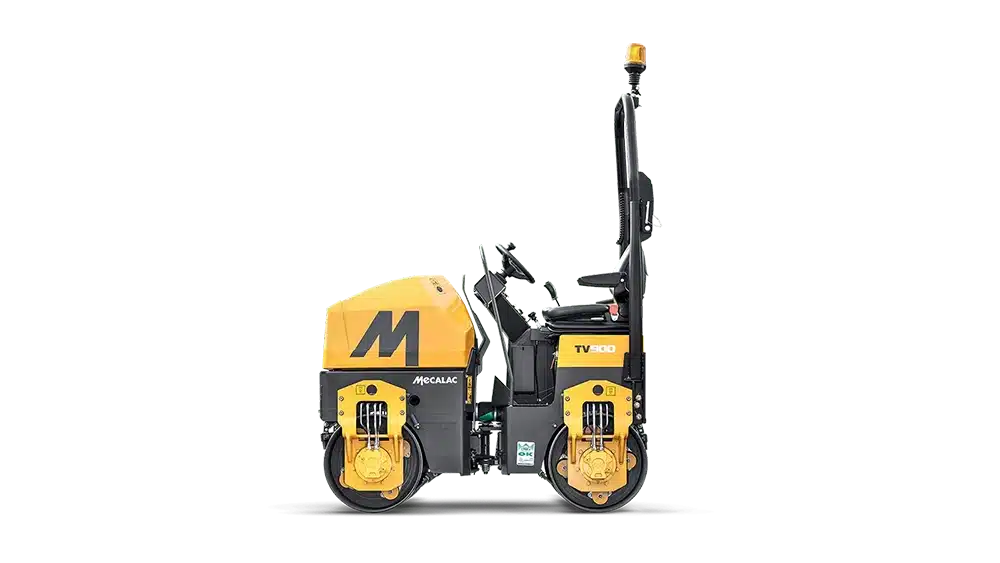

With a 900mm drum, the TV900 delivers high compaction productivity by the powerful well-proven mass exciter system, which delivers high dynamic force. Optimised balance between frequency and amplitude provides ultimate versatility in meeting all kinds of job site conditions. Optional hydraulic breaker outlet provides 30L/min flow rate (Category 2), removing the need for an additional powerpack or compressor on site, further increasing the versatility of this compact model.
VIDEOS
Specifications
| Total operating weight | 1568 kg (3,457 lb) |
| Engine power | 17,5 kW (23 hp) |
| Turning circle | 5740 mm (18’99”) |
| Travel speed | 8,7 km/h (48.7 mph) |
| Overall width | 970 mm (3’2”) |
| Overall length | 1860 mm (6’1”) |
| Drum width | 900 mm (2’11”) |
| Centrifugal force | 1000/1250 daN (2,248/2,810 lbf) |
| Frequency | 46/52 Hz (2,760/3,120 VPM) |
| Static linear Load | 8,7 kg/cm (48.7 lb/inch) |
| Amplitude | 0,5 mm (0’019”) |
